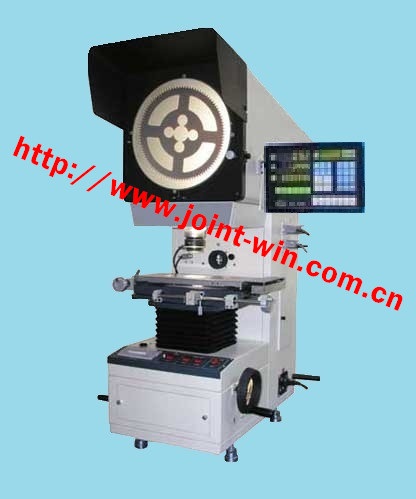

300 Vertical Profile projector Model VP12-2010S



產品型號：VP12-2010S

產品分類：自動化設備/產業機械 / 檢測設備 / 光學投影機



立即線上詢問





產品特色



Application:
This digital type high-precision projector is a highly efficient measuring instrument integrating light, machine and electricity. It can be widely used for industries such as mold manufacturing, metal work pressing, electronics, instrument, horologe, as well in universities, research institutes and metering examination departments.

Features:
1. the up and down system adopts linear guide way and nuts without interference. Therefore it is more comfortable and stable for the up and down system.
2. The refelecting mirror adopts Patent coating technics with good anti-dust effects.
3. The transmission illuminating brightness has two grades of high and low, which can meet measuring requirements of different workpieces.
4. The light source adopts Philip tungsten halogen lamp with high brightness and long using life to satisfy long time using demands
5. Axial flow fan with strong dispipation heat function dissipates heat in double directions
6. The optical system has excellent quality, the objective forms clear image and the magnification is accurate.
7. The working distance on object is large, which can meet the measuring requirements of different shape parts.
8. The multi-function readout with RS232 port can realize the output and communication of data.
9. The instrument is positive image projector with external readout. according to the using habits of operator’s, it can also customize the projectors of different styles of positive image built-in readout, negative image external readout and negative image built-in readout.
