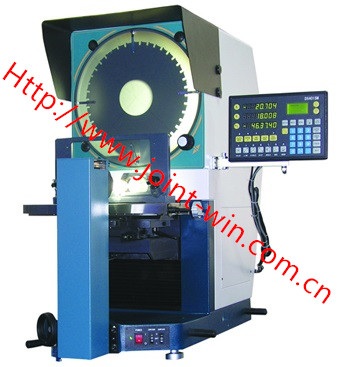

Working table

Working table size(mm)

400*200

X-axis travel(mm)

250

Z-axis travel(mm)

150

Y-axis travel(mm)

100(for focus)

Turning range

±15°

Resolution(X-axis,Z-axis)

0.5µm

The indication error of coordinate(µm)

(4+L/25) (L is the length of the work pieces to be measured,unit: mm)

Projector screen

Screen size(mm)

Ø400

Screen rotary range

0°-360°

Rotary angle Resolution

1´  or 0.01

Lens

Magnification

5X(option)

10X( Standard)

20X(option)

50X(option)

100X(option)

Object view(mm)

Ø80

Ø40

Ø20

Ø8

Ø4

Working distance(mm)

93.7

103.9

95.1

65.7

35.0

Dimension

L*W*H(mm)

1215*646*1210

Weight

Unit:(kg)

240

Data processing system

multi-function data processing system,can be used to gather the data and measure the point ,line, circle, angle and distance

Illumination

Transmission: 24V/150W, cooling by fans.
Reflection: 21V/150W, illuminated by two fibers ,cooling by fans.

Power

110V/220V(AC) 50/60Hz total power=400W

Option

Mini-printer, Edge detector, M2D software and so on, please refer to Accessories for measuring projector for more details.

Ideal table

 Loading weight>350kg Dimension:1100(L)*550(W)*500(H)mm
