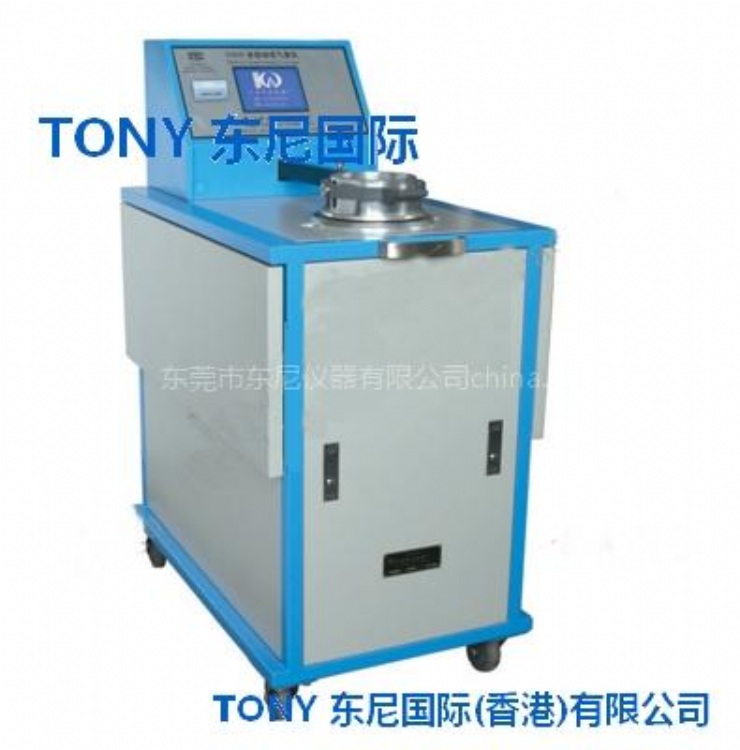

Air Permeability Tester
產品型號：TNJ-046
產品分類：自動化設備/產業機械 / 檢測設備 / 檢測、量測設備及其另件
產品特色
The Digital Air Permeability Tester accurately and swiftly determines the resistance of fabrics (woven, knitted and non woven textile materials ) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head/area. The specimen is loaded to the test area of the instrument easily by means of a clamping lever. By pressing down the clamping arm to start the test. a powerful, muffled vacuum pump draws air through an interchangeable test head with a circular opening.The pre-selected test pressure is automatically maintained, and after a few seconds the air permeability of the test specimen is digitally displayed in the pre-selected unit of measure. By pressing down the clamping arm a second time the test specimen is released and the vacuum pump is shutoff. Sample Holders. A 20cm² test head is included with the instument.
產品規格
5 sq.cm test area, 20sq.cm test area, 25sq.cm test area, 38sq.cm test area, 50sq.cm test area. 100sq.cm test area.
