Button snap tester
產品型號：TW-258
產品分類：自動化設備/產業機械 / 檢測設備 / 檢測、量測設備及其另件
產品特色

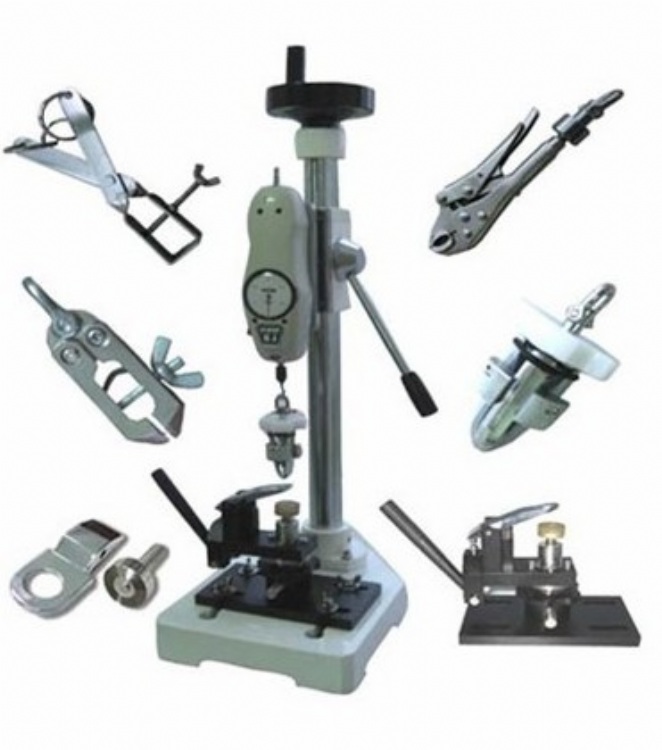

Button Pull Test Machine. To determine the holding or breaking strength of prong-ring attached snap fasteners onto garments. Consists of an Upper Snap Clamp, a Lower Fabric Clamp & Force Gauge mounted on a Stand. The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the Top Flywheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded.
Used for measuring the responsibility of garment manufacturer to ensure
button and firmware can be fixed on the ready-made garments properly,
Avoiding button drop from garment to brought danger to baby swallow.
Used for testing the vertical orientation tension of button and added touch.
產品規格
Dimensions : 280 x 230 x 735 mm （L×W×H）
Weight:25 kg
Accessories:
a) 30kg Impact Force Gauge FB-30K: 1Pc
b) Upper Stud Clamp: 1Pc
c) Snap Clamp: 1Pc
d) Lower Fabric Clamp, Lever Arm locking: 1Pc
e) Three Pronged Clamp: 1Pc
f) 17 Standard Pressure Clamp 17: 1Pc
Standards：16 CFR 1500.51-53, ASTM WK4510 PS79-96，ASTM F963，EN71-Part1,M&S P115A
