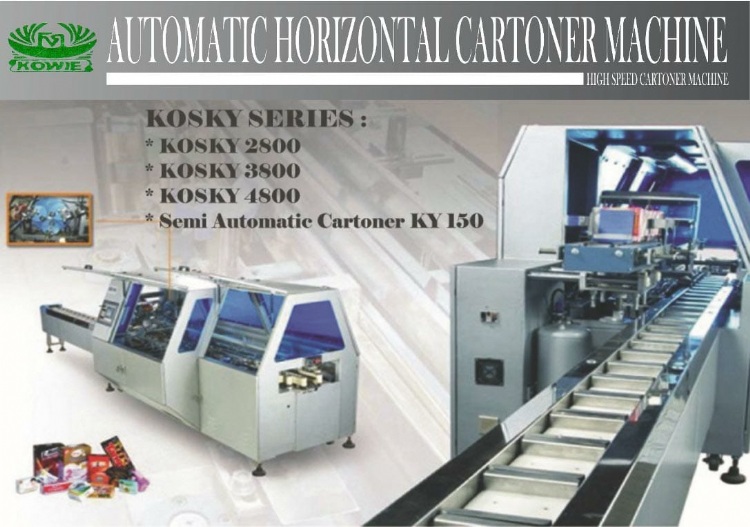

Horizontal Cartoning Machine (KY2800 / 3800 / 4800)
產品型號：KY 2800 / 3800 / 4800
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 裹包機、捆包機、打包機、點膠機
產品特色
# Put 1 or more product into a box (small to medium box size)
# There are 4 Steps in this machine
(Leaflet pick and place, Inner box pick and place, product push to the box, flap box folded)
# Able to seal with 2 type (Hot-melt system and tuck-in system)
# Provide with Safety Alarm and Sensors
# Using well known brand for electrical and motor parts (such as Fuji, Omron, Panasonic, Sick, Schneider, etc.). We also can do by request for the brand.
# 3 Nozzle Carton Vacuum
# 9-12 Piston Pusher
# Inner box material using carton paper
產品規格
# High speed (up to 150ppm) with Low Error Rate (up to 1%)
# Box size range:
(KY2800) Length 160-250mm | Width 80-150mm | Height up to 20-80mm
(KY4800) Length 85-120mm | Width 20-80mm | Height up to 20-70mm
# Product Maximum Weight = up to 500g
# Machine Dimension:
(KY2800) Length 3300mm | Width 1892mm | Height up to 1745mm (+ conveyor)
(KY4800) Length 2420mm | Width 1402mm | Height up to 1640mm (+ conveyor)
# Warranty will be 12 months mechanical and 6 months electrical (excluding consumable parts)
We also have after-sales services.
# Machine condition is brand new (start manufacure after received PO, approximately 120 working days after received the PO).
# Can be discuss further for the terms and condition. (feel free to talk with us)
