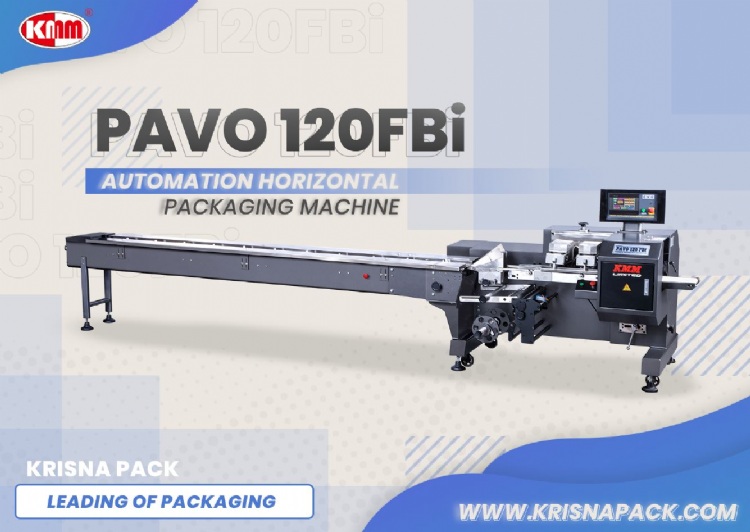

Horizontal Packaging Machine (Pavo 120FB - Bottom Film Roll)
產品型號：Pavo 120FBi or s
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 裹包機
產品特色
# Able to pack different kind of product (medium to large, single to group pack)
# Special for wafer roll packing machine (for 2 or more pieces of wafer roll)
# Packing type will be pillow bag
# Horizontal machine with adjustable bag former size and single/double roll film below system (double with auto-splicing)
# Providing a touchscreen control panel and with/without single servo motor
# Provide with safety alarm and sensor
# Using well known brand for electrical and motor parts (such as Fuji, Omron, Panasonic, Sick, Schneider, etc.). We also can do by request for the brand.
產品規格
# High speed (20 up to 120ppm) with low error rate (up to 0.2%)
However, this depends on product and film characteristic
# Packaging size range:
Length 100-350mm | Width 25-150mm | Height up to 50mm
# Machine Dimension:
Length 4312mm | Width 1120mm | Height 1420mm
# Packaging material AL+PE | OPP+PE | NE+PE | etc. (at least 2 layer)
# Optional:
- Feeding system, inline system, integrated to another machine/system, etc.
- Date coding, labeling, rejector / filling air (with air blower at output area), nitrogen flushing, gusset system, etc.
- Machine material, color or design by request (available and advance notice)
- Electrical brand by request (advance notice)
# Warranty will be 12 months mechanical and 6 months electrical (excluding consumable parts)
# Machine condition is brand new (start manufacure after received PO and DP, 60 working days)
