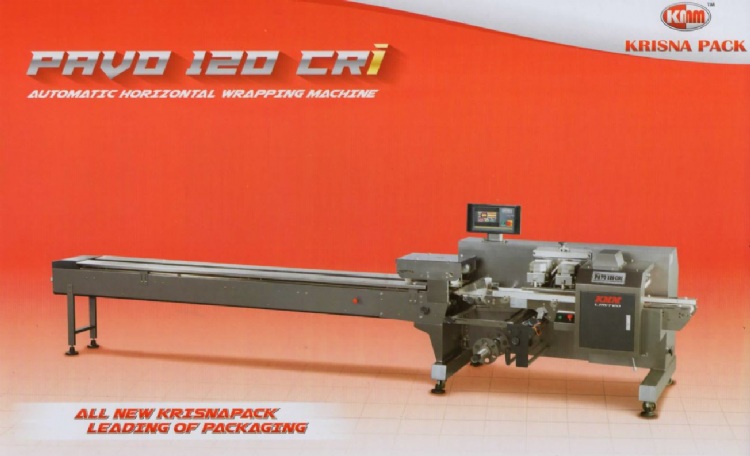

Horizontal Flow Wrapping Machine (Pavo 120CRi)
產品型號：Pavo 120CRi
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 裹包機、捆包機、打包機、點膠機
產品特色
# Able to pack different kind of product (large/family/group pack)
# Packing Type will be Pillow / Bag
# Horizontal Machine with Adjustable Bag Former Size and Single Roll Film below System
# Providing a Touchscreen Control Panel and with/without Single Servo Motor
# Provide with Safety Alarm and Sensor
# Using well known brand for electrical and motor parts (such as Fuji, Omron, Panasonic, Sick, Schneider, etc.). We also can do by request for the brand.
# There are 3 types of machine for this model - Pavo 120CRi | Pavo 120CRJi | Pavo 120CRSJi
產品規格
# Speed max up to 50ppm with Low Error Rate (less than 1%)
However, this depends on type of product and film roll material (thickness)
# Packaging size range:
(CRi) Length 100-400mm | Width 100-180mm | Height up to 100mm
(CRSJi) Length 100-500mm | Width 100-350mm | Height up to 130mm
# Product Maximum Weight = 500g ~ 1000g
# Machine DImension:
(CRi) Length 4910mm | Width 1230mm | Height 1490mm
CRSJi) Length 6000mm | Width 1590mm | Height 1490mm
# Packaging Material AL+PE | OPP+PE | NE+PE | etc. (at least 2 layer)
# Warranty will be 12 months mechanical and 6 months electrical (excluding consumable parts)
We also have after-sales services.
# Machine condition is brand new (start manufacure after received PO, approximately 60 working days after received the PO).
# Can be discuss further for the terms and condition. (feel free to talk with us)
