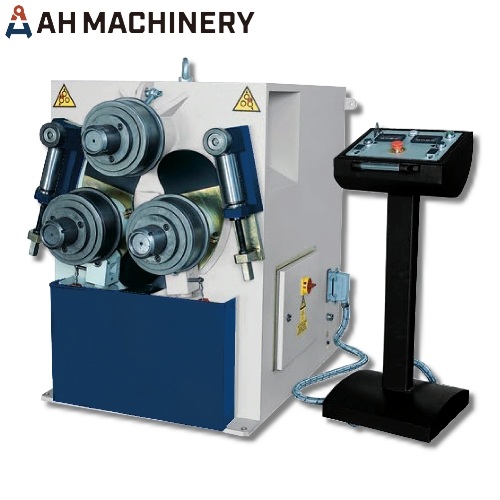

AH MACHINERY supplies full range of Tube Bending Machine, Section Bending, Pipe Bending Machine for Heavy Duty made in Taiwan, customized specifications are available.


/APPLICATIONS/
Aerospace, auto accessories, auto aftermarket, construction, department of defense, exhaust applications, gym equipment, high performance racing, motorcycle parts, play structures, severe duty trucks, shipyard and so on.


/SPECIFICATION/
- Shape= 1 - 15 Type
- For= Heavy Duty
- Sheet Metal O.D [mm/inch]= 6.35/0.25, 10/0.39, 12.7/10.5, 15/0.59, 20/0.79, 25.4/1, 25/0.98, 30/1.18, 35/1.38, 40/1.57, 45/1.77, 50/1.97, 60/2.36, 70/2.76, 76.2/3, 80/3.15, 100/3.94, 120/4.72, 125/4.92, 139.7/5.50, UPN100, UPN120, UPN140, φ10, φ15, φ20, φ25, φ30, φ50, φ60, φ100
- Sheet Metal Thickness [mm/inch]= 1/0.04, 1.5/0.06, 1.8/0.07, 2/0.08, 2.5/0.10, 2.6/0.10, 2.77/0.11, 2.9/0.12, 3/0.12, 3.2/0.13, 3.5/0.14, 4/0.16, 5/0.20, 5.48/0.22, 6/0.24, 8/0.31, 9/0.35, 10/0.39, 15/0.59, 20/0.79, 25/0.98, 30/1.18, 35/1.38, 40/1.57, 45/1.77, 50/1.97, 70/2.76, 80/3.15, UPN100, UPN120, UPN140, φ10, φ15, φ20, φ30, φ50
- Sheet Metal Height [mm/inch]= 2/0.08, 3/0.12, 4/0.16, 5/0.20, 7/0.28, 8/0.31, UPN100, UPN120, UPN140
- Min. Diameter [mm/inch]= 200/7.87, 280/11.02, 300/11.8, 350/13.78, 380/14.96, 400/15.75, 450/17.72, 500/19.69, 600/23.62, 700/27.56, 800/31.50, 900/35.43, 1000/39.37, 1200/47.24, 1300/51.18, 1400/55.12, 1600/62.99, 2000/78.74


/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.

Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
