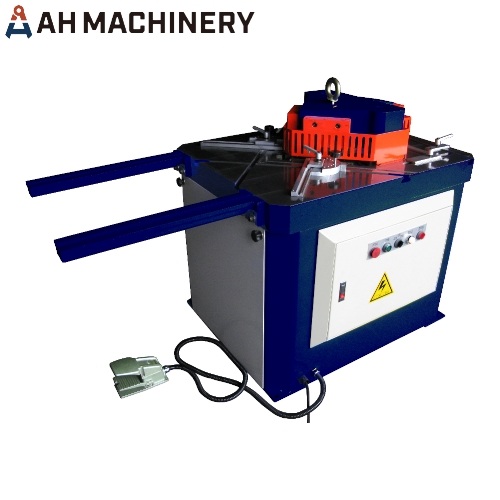

AH MACHINERY supplies full range of Hydraulic Notching Machine, Angle Notchess made in Taiwan, customized specifications are available.


/APPLICATIONS/
Aluminum extrusions, cutting angles, decoration Industry, door and window frames, door frames, edges of soft steel, interior decoration, light boxes, screens, stainless steel plates, trims and so on.


/SPECIFICATION/
- Type= Hydraulic
- Suitable for= SS 41, SUS 304
- Blade Material= SKD 11
- Cutting Capacity [mm]= 2.0x220x220, 4.0x220x220, 4.5x250x250, 6.0x250x250
- Edge Notch [mm]= 1.2x50x100, 2.0x50x100, 3.2x50x100, 4.5x50x100
- Force [Ton]= 15, 20
- Pressure [Kg/cm2]= 140
- Pump [L/min]= 30
- Tank Volume [L]= 40
- Stroke Optimization [mm]= 22, 50
- Strokes per Minute= 13, 35
- Table Height [mm/inch]= 830/32.68, 900/35.43
- Main Motor= 3HPx4P, 5HPx4P
- Weight [Kgs/Lbs]= 900/1984, 2000/4409
- Overall Dimensions [mm] [LxWxH]= 1050x850x1200, 1550x110x1350


/AH NOTCHING MCAHINES SPECIFICATION/

/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.
#Heavy_duty_type

Welcome to contact us!
A Homia will satisfy you as long as you give us a try!
