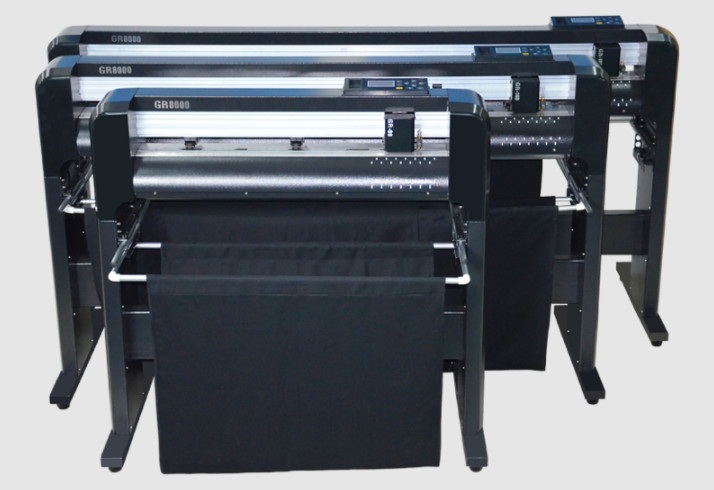

Gunner GR8000 Series Vinyl Cutter CNC Vinyl Cutter Machine
產品型號：--
產品分類：自動化設備/產業機械 / 自動化設備 / 雷射切雕刻機
產品特色
GR8000 ensures the high rate of return of customers in Automotive Aftermarket, Wide Format Signage, Heat Transfer Apparel, Custom Decals and Stickers, Road& Traffic Reflective Signage and more.
產品規格
Vinyl Cutter China
As the meticulous works by Gunner, GR8000 Series adequately embodies the high performance cutting plotter in every aspects, such as superior stability, high precision, high cutting/ plotting speed, extra long distance linear tracking ability, big cutting force, super simple operation, just name a few.
GR8000 ensures the high rate of return of customers in Automotive Aftermarket, Wide Format Signage, Heat Transfer Apparel, Custom Decals and Stickers, Road& Traffic Reflective Signage and more.
GR8000 Series performs quality cutting in those thin, thick, rigid materials like Paint Protection Film/PPF, Window Tint, High Intensity Prismatic Reflective Sheeting, Magnets, Sandblast Rubber Stencil and common vinyl stickers.
Parameters of GUNNER CNC Vinyl Cutter Machine
|
Model |
GR8000-80 |
GR8000-140 |
GR8000-180 |
|
Max.Cutting Width |
690mm (Non-contour Cutting） |
1290mm (Non-contour Cutting） |
1630mm (Non-contour Cutting） |
|
600mm (Contour Cutting） |
1220mm (Contour Cutting） |
1520mm (Contour Cutting） |
|
|
Max.Mountable Media Width |
840mm |
1440mm |
1780mm |
|
Min.Mountable Media Width |
70mm |
||
|
Applicable Media Thickness |
≤1.5mm |
||
|
Max.Cutting Speed |
800mm/s |
||
|
Max.Cutting Force |
600G / 5.8N in 8 Steps |
||
|
Cutting Force Setup |
Adjustable in Every 1G |
||
|
Drive |
Servo |
||
|
Mechanical Resolution |
0.0125mm |
||
|
Min.Character Size |
3 x 3mm |
||
|
IOS |
Win10 / 8 / 7 / XP |
||
|
Memory Buffer |
2MB |
||
|
Software |
Windows Driver, SignWorkPro, CADtoPlotpro |
||
|
LCD |
English / Chinese |
||
|
File Format |
HP-GL, PLT |
||
|
Port in Standard |
USB, RS-232 |
||
|
Registration Marks Sensing |
Red Laser Sensor |
||
|
CCD Camera |
For option |
||
|
Power Input |
AC90- 240V，50-60Hz |
||
|
Power Consumption |
60w |
||
|
Cutter Holder/Pen Holder |
1 for each |
||
|
Cutter Blade Diameters |
2.0mm |
||
|
Cutter Blade Angles |
30°, 45°, 60° |
||
|
Types of Pen |
Water based fiber-tip pen & Oil based ball pen |
||
|
Method to Fix Material |
Push rollers |
||
|
Media Stock Roller Plates |
Included |
||
|
Basket |
For option |
||
|
Package Size L-W-H |
1180x400x570mm |
1710x400x570mm |
2200x400x570mm |
|
Gross / Net Weight |
42/27kg |
96/62kg |
105/72kg |
Gunner’s most cost effective digital cutter and related controllers are widely used in any industry for any material. With Perennial years export experiences, our PPF, Window Tint, Printing and Cutting, Reflective Sheeting has been welcomed in international markets. If you are considering a more economic and faster digital solution, please click here to browse our website.
