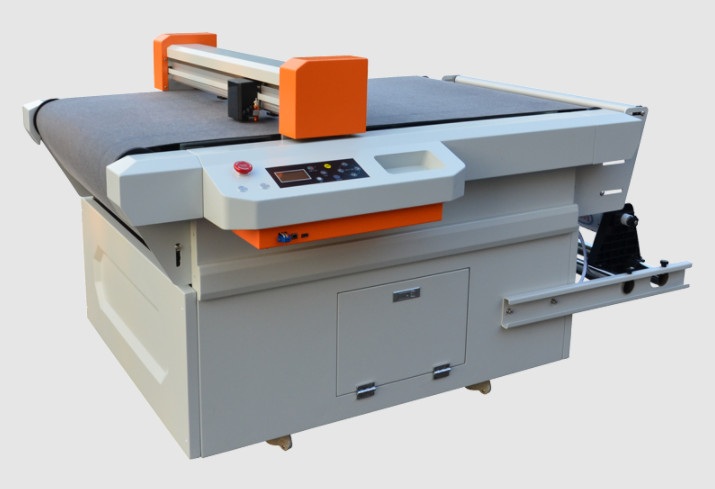

GR6090F Auto Fed Flatbed Digital Cutter Auto Fed Cutting Plotter
產品型號：--
產品分類：自動化設備/產業機械 / 其他產業機械 / 壓鑄機械
產品特色
GR6090F, a special purpose auto fed flatbed digital cutter for DTF industry with features optimized according to characters of material applied in the DTF field.
產品規格
Auto Fed Vinyl Cutter
GR6090F, a special purpose auto fed flatbed digital cutter for DTF industry with features optimized according to characters of material applied in the DTF field.
Super easy installation, one-key operation and high efficiency make GR6090 a right-hand man for DTF, Heat transfer apparel industries.
Parameters of GR6090F Auto Fed Flatbed Digital Cutter
|
Model |
GR6090F |
|
Working Size on X Axis |
610mm (Non-contour Cutting) |
|
600mm (Contour Cutting) |
|
|
Working Size on Y Axis |
Sheet Material: 910mm |
|
Roll Material: Whole Roll |
|
|
Max.Media Width Applicable |
779mm |
|
Applicable Media Thickness |
≤1.5mm |
|
Applicable Media |
Reflective Sheeting, PPF, Window Tint, PPE, PET, PVC, Vinyl Sticker |
|
Method to Feed Media |
Conveyor & Roll Media Bracket |
|
Method to Fix Media |
Vacuum Table |
|
Max. Cutting Speed |
600mm / s |
|
Max. Cutting Force |
600G / 5.8N in 8 Steps |
|
Cutting Force Setup |
Adjustable in Every 1G |
|
Cutter Blade Diameters |
Φ2.0mm |
|
Cutter Blade Angles |
30°, 45°, 60° |
|
Dotted Lines Cutting |
Included |
|
Drive |
AC Servo |
|
Mechanical Resolution |
0.0125mm |
|
IOS |
Win10 / 8 / 7 / XP |
|
Memory Buffer |
2MB |
|
CAD/CAM Software |
Windows Driver, SignWorkPro, CADtoPlotpro |
|
LCD |
English / Chinese |
|
File Format |
HP-GL, PLT |
|
Port in Standard |
USB, RS-232 |
|
Registration Marks Recognition |
CCD Camera |
|
Power Input |
AC 90-240v, 50-60Hz |
|
Power Consumption |
2.2kw |
|
Cutter Holder |
1 |
|
Bar-code for Data Link |
For option |
|
Roll Media Bracket |
Included |
|
Floor Plan W-L-H |
1080 x 1200 x 980mm |
|
Package Size W-L-H |
1220 x 1350 x 1220mm |
|
Gross / Net Weight |
180 / 110kg |
