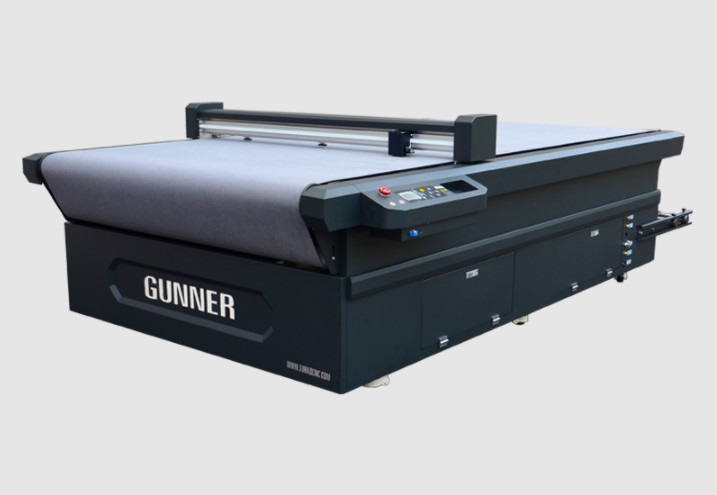

Gunner F Series Auto Fed Flatbed Digital Cutter
產品型號：--
產品分類：自動化設備/產業機械 / 其他產業機械 / 金屬冶煉加工設備
產品特色
Gunner F Series- GR1312F/ 1612F/ 1325F, a faster, more accurate, more economical digital cutter designed for industries as Road& Traffic Safety Signs, Automotive Aftermarket, Heat Transfer Apparel(DTF), Print Cut, Die Cutting and other signage graphics.
產品規格
Advertising Signs Flatbed Cutter Traffic Safety Sign Cutting Plotter
Gunner F Series- GR1312F/ 1612F/ 1325F, a faster, more accurate, more economical digital cutter designed for industries as Road& Traffic Safety Signs, Automotive Aftermarket, Heat Transfer Apparel(DTF), Print Cut, Die Cutting and other signage graphics.
F Series is typically applied to cut both printed and unprinted medias with thickness ≤1.5mm, such as Reflective Sheeting, Paint Protection Film/PPF, Window Tint, PPE, PET, PVC, PU, Paper and other vinyl stickers with incomparable high efficiency.
F Series of auto fed flatbed digital cutter is capable of cutting materials in roll and sheet/piece with outstanding high quality, series of cutting methods including perforation cutting, half cutting, creasing and marking benefit clients greatly with more output and less cost of labor.
Parameters of High End Digital Cutter
|
Model |
GR1312F |
GR1612F |
GR1325F |
|
Working Size on X Axis |
1300mm (Non-contour Cutting) |
1520mm (Non-contour Cutting) |
1300mm (Non-contour Cutting) |
|
1240mm (Contour Cutting) |
1490mm (Contour Cutting) |
1240mm (Contour Cutting) |
|
|
Working Size on Y Axis |
Sheet Material: 1200mm |
Sheet Material: 1200mm |
Sheet Material: 2500mm |
|
Roll Material: Whole Roll |
Roll Material: Whole Roll |
Roll Material: Whole Roll |
|
|
Max.Media Width Applicable |
1469mm |
1689mm |
1469mm |
|
Applicable Media Thickness |
≤1.5mm |
||
|
Applicable Media |
Reflective Sheeting, PPF, Window Tint, PPE, PET, PVC, Vinyl Stick |
||
|
Method to Feed Media |
Conveyor & Roll Media Bracket |
||
|
Method to Fix Media |
Vacuum Table |
||
|
Max. Cutting Speed |
600mm / s |
||
|
Max. Cutting Force |
600G / 5.8N in 8 Steps |
||
|
Cutting Force Setup |
Adjustable in Every 1G |
||
|
Cutter Blade Diameters |
Φ2.0mm |
||
|
Cutter Blade Angles |
30°, 45°, 60° |
||
|
Dotted Lines Cutting |
Included |
||
|
Drive |
AC Servo |
||
|
Mechanical Resolution |
0.0125mm |
||
|
IOS |
Win10 / 8 / 7 / XP |
||
|
Memory Buffer |
2MB |
||
|
CAD/CAM Software |
Windows Driver, SignWorkPro, CADtoPlotpro |
||
|
LCD |
English / Chinese |
||
|
File Format |
HP-GL, PLT |
||
|
Port in Standard |
USB, RS-232 |
||
|
Registration Marks Recognition |
CCD Camera |
||
|
Power Input |
AC 110- 220V，50-60Hz |
||
|
Power Consumption |
3.2kw |
3.2kw |
3.2kw |
|
Cutter Holder |
1 |
||
|
Bar-code for Data Link |
For option |
||
|
Roll Media Bracket |
Included |
||
|
Floor Plan W-L-H |
1900 x 2150 x 1010mm |
2100 x 2150 x 1010mm |
1900 x 3400 x 1010mm |
|
Package Size W-L-H |
1920 x 1850 x 1220mm |
2150 x 1920 x 1220mm |
3120 x 2150 x 1220mm |
|
Gross / Net Weight |
320 / 240kg |
340 / 260kg |
850 / 620kg |
Gunner Shanghai Automation, LTD is a professional digital cutter manufacturer with more than 20 years experience. Specialized in the design and production of Auto Fed Flatbed Digital Cutter, Vinyl Cutter and Cutting Plotter, we commit to offer you a more economic and faster cutting solution!
