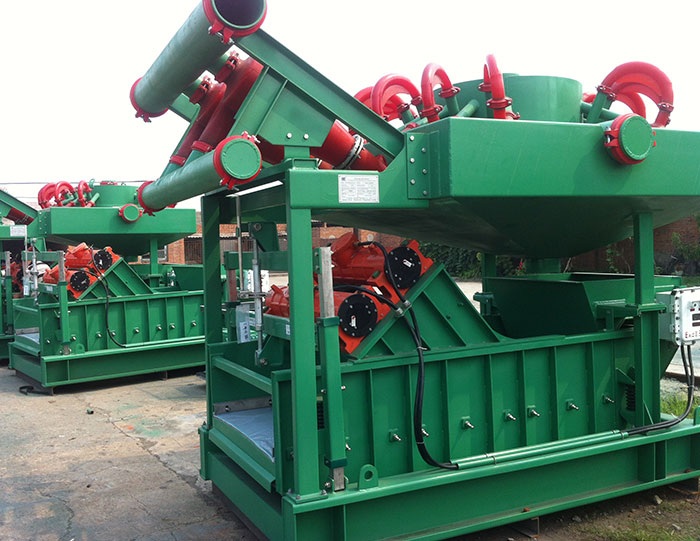

Oilfield Mud Cleaner Mud Cleaning Equipment Mud Cleaning Machine

Oilfield Mud Cleaner Mud Cleaning Equipment Mud Cleaning Machine Mud Cleaning System

PRODUCT DESCRIPTION

Mud Cleaner is the mud cleaning equipment combination of desander,desilter hydrocyclone and an underflow shale shaker.

（1）Compact structure, powerful function and small footprint area.

（2）The material of hydrocyclone use the wear-resistant special polyurethane.

（3）Underflow shaker equips the DC different model shale shakers.

（4）We can design and manufacture the different numbers of desander and desilter hydrocyclone for clients'requirements.

Mud Cleaner Parameters

Model		DCQJ250 × 1/100 × 6	DCQJ250 × 1/100 × 8	DCQJ250 × 2/100 × 12	DCQJ300 × 2/100 × 16
Treating Capacity		90m3/h 396GPM	120m3/h 528GPM	240m3/h 1056GPM	300m3/h1320GPM
Separation Size		15-75μm
Desander Cones		10"（250） × 1	10"（250） × 1	10"（250） × 2	12"（300） × 2
Desilter Cones		4"（100） × 6	4"（100） × 8	4"（100） × 12	4"（100） × 16
Inlet Diameter		DN150
Outlet Diameter		DN200
Pressure		0.25～0.40MPa
Matching Pump		DCSB5 × 4-12-22kW	DCSB6 × 5-12-30kW	DCSB8 × 6-13-55kW	DCSB8 × 6-13-55kW
Matching Shaker	Model	DCZS850-2K	DCZS700-3G	DCZS630-3K
	Vibrating Model	Linear Motion
	Motor Power	2 × 1.5kW	2 × 1.5kW	2 × 1.5kW
	Screen Qty	2 panel	3 panel	3 panel
	Screen Specification	850 × 1250mm × 2 panel，120～300mesh	700 × 1050mm × 3 panel，120～300mesh	630 × 1250mm × 3 panel，120～300mesh
	Screen Area	2.12m2	2.2 m2	2.36 m2
	Screen Type	Steel Frame	Hookstrip	Steel Frame
	Electric Specs	380V/50HZ or 460V/60HZ or Customized
	EX Standard	Ex dⅡBT4
Dimension		2530 × 1750 × 2210 mm	2530 × 1750 × 2210 mm	2530 × 1750 × 2210 mm	2530 × 1750 × 2210 mm
Weight		1780kg	2080kg	2200kg	2350kg
Remark		1、4" Cones =10～20m3/h, 10" Cones =90~120m3/h ，12" Cones＞120m3/h 2、The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3
