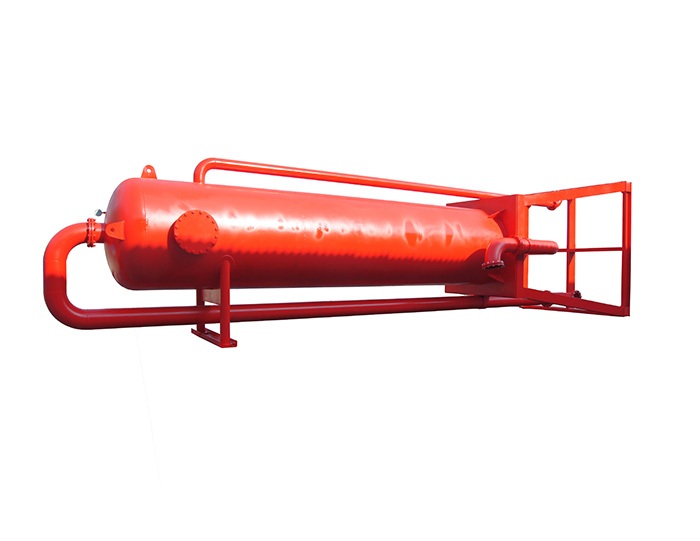

Constant Pressure Drilling Fluid Mud Gas Separator
產品型號:1
產品分類:自動化設備/產業機械 / 特殊工作機械 / 金屬線材之其他加工機
產品特色
Constant Pressure Drilling Fluid Mud Gas Separator
產品規格
Constant Pressure Drilling Fluid Mud Gas Separator Mud Gas Separator Used In Oilfield
PRODUCT DESCRIPTION
Constant pressure drilling fluid mud gas separator is a specialized equipment used for primary degassing of gas-cutting drilling fluid,it is mainly used to remove big bubbles whose diameter ≥φ3mm.
Mud gas separators produced by DC have the advantages of safety and reliability,good treatment effect,long service life ,etc.
Constant pressure Anti-H2S drilling fluid mud gas separator manufactured by DC adopts high quality material , can effectively prevent the erosion of harmful gas and ensure production safety of man and machine.
Mud Gas Separator Parameters
Model |
DCZYQ800 |
DCZYQ1000 |
DCZYQ1200 |
Treating capacity |
200~260m3/h |
240~300m3/h |
280~360m3/h |
Main body |
800mm |
1000mm |
1200mm |
Tank wall thickness |
10mm |
10mm |
12mm |
Inlet |
5" |
5" |
5" |
Outlet |
8" |
8" |
10" |
Vent-pipe |
8" |
8" |
8" |
Dimension |
1600×1600×5720mm |
2000×2000×5920mm |
2200×2200×6634mm |
Weight |
1600kg |
2100kg |
3200kg |
We provide Solid Control Equipment, drilling mud system, shaker screen and solids control equipment spare parts, include Submersible Slurry Pump, Drilling Cutting Box, Jet Mud Mixer, Vacuum,Degaaser, Decanter Centrifuge, Mud Gas Separator.Our products have high quality and competitive prices,Please click here to visit our website and learn more.
