Mud Gun Mud Gun Is Used In Oil Field Drilling
產品型號:1
產品分類:自動化設備/產業機械 / 特殊工作機械 / 金屬線材之其他加工機
產品特色
Mud Gun Mud Gun Is Used In Oil Field Drilling
產品規格
Mud Gun Mud Gun Is Used In Oil Field Drilling
PRODUCT DESCRIPTION

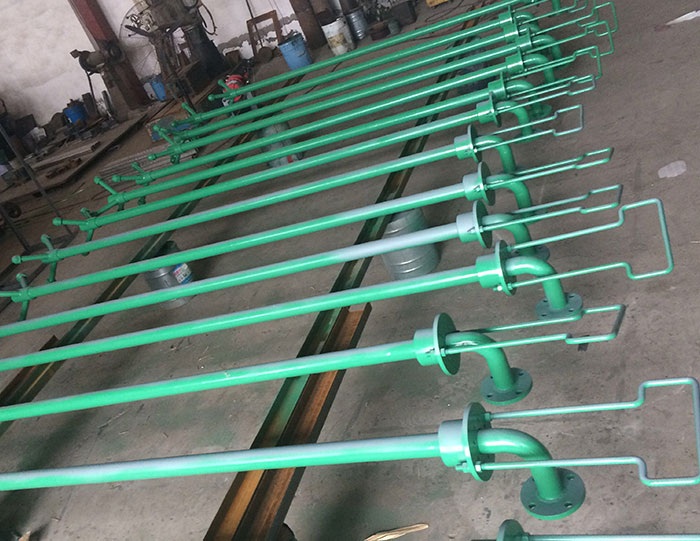

Mud Gun is also called drilling fluid gun which is solid control equipment produced by DC Solid control.
Mud Gun is divided into low pressure, medium pressure and high pressure. It is located in the top of the drilling fluid circulating tank and mainly used in the tank corner to prevent solid precipitation or and wash the bottom of the tank,it also can transport the mud between tank and tanks. Besides, mud guns can be supplied by centrifugal pump or mud pump.
Mud Guns produced by our company have the advantages of good spray effect ,large clean area,simple structure,flexible operation and easy to use.
Mud Gun Parameters
Model |
DCNJQ50 |
DCNJQ80 |
Diameter |
50mm(2") |
80mm(3") |
Work Pressure |
1.0Mpa~3.2Mpa |
|
Nozzle Number |
3 |
|
Rotation Angle |
120° |
|
length |
1500mm or customized |
|
Dimension |
1900×460×360mm |
1900×460×360mm |
weight |
45kg |
50kg |
We provide Solid Control Equipment, drilling mud system, shaker screen and solids control equipment spare parts, include Submersible Slurry Pump, Drilling Cutting Box, Jet Mud Mixer, Vacuum,Degaaser, Decanter Centrifuge, Mud Gas Separator.Our products have high quality and competitive prices,Please click here to visit our website and learn more.
