Centrifugal Pump Mud Pump For Drilling Rig

放大圖片

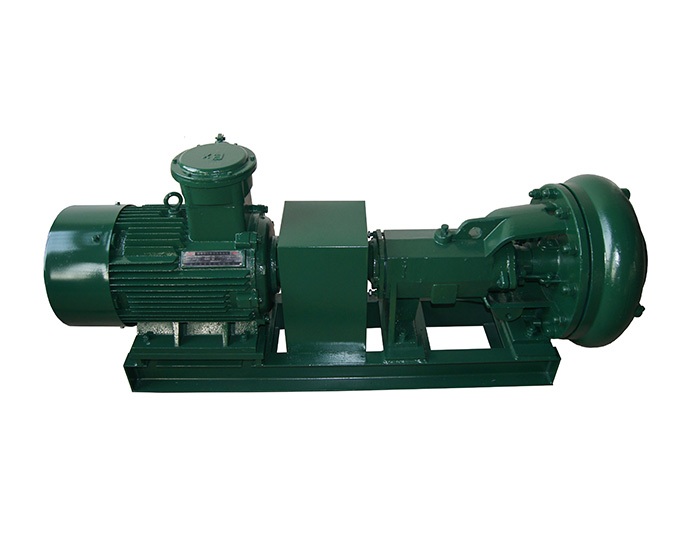

Centrifugal Pump Mud Pump For Drilling Rig

產品型號：1

產品分類：自動化設備/產業機械 / 特殊工作機械 / 金屬線材之其他加工機

立即線上詢問

產品特色

產品規格

Centrifugal Pump Mud Pump For Drilling Rig Oil Drilling Mud Pump

DESCRIPTION of Centrifugal Mud Pump

Centrifugal Pumps are used to supply slurry to desanders and desilters, and at the same time can be kinetic pumps for jet mud mixers.

（1） Adopt high wear resistant hard alloy mechanical seal .

（2） Adopt imported bearings .

（3） Adopt thicker pump cases , whose flow passages are more reasonable , which can reduce turbulence to the minimum.

（4） Pump body adopts open structure , which makes the installation, repair and maintenance to be more convenient.

（5） Impellers and over-current components all adopt high wear resistant cast iron.

Model	Flow		Lift（m）	Efficiency（%）	NPSH（m）	Power（kW）	Speed（rpm）	Dimension（mm）	Weight（kg）
Model	m3/h	GPM	Lift（m）	Efficiency（%）	NPSH（m）	Power（kW）	Speed（rpm）	Dimension（mm）	Weight（kg）
DCSB8x6-14	320	1408	40	65	4.0	75	1480	1980×660×1030	1105
DCSB8x6-13	290	1276	33	64	4.5	55	1480	1910×660×930	945
DCSB6x5-14	200	880	40	62	3	55	1480	1870×570×930	900
DCSB6x5-13	180	792	34	60	3	45	1475	1820×570×830	765
DCSB6x5-12	160	704	30	60	3	30	1470	1740×570×830	700
DCSB5x4-14	120	528	40	56	4.6	37	1475	1770×480×830	710
DCSB5x4-13	90	396	40	56	4.5	30	1470	1710×480×830	650
DCSB5x4-12	90	396	30	56	4.5	22	1470	1650×480×830	600
DCSB4x3-13	50	220	40	48	4.5	18.5	1470	1610×500×750	560
DCSB4x3-12	45	198	30	47	4	15	1460	1570×500×750	510
DCSB3x2-13	25	110	35	40	3	11	1460	1470×480×750	450
DCSB3x2-12	23	101	29	39	3	7.5	1440	1360×480×700	400
DCSB3x2-11	20	88	23	39	3	5.5	1440	1320×480×700	390
DCSB8x6-12	335	1474	43	66	4.8	75	1780	1980×660×1030	1105
DCSB6x5-12	196	862	48	61	3	55	1780	1870×570×930	900
DCSB5x4-14	149	656	61	58	4.6	45	1760	1800×480×830	715
DCSB5x4-12	120	528	40	58	4.6	37	1760	1770×480×830	710
DCSB5x4-11	112	493	45	57	4.2	30	1760	1710×480×830	650
DCSB5x4-10	105	462	30	57	4	22	1750	1650×480×830	600
DCSB4x3-12	55	242	46	48	4	18.5	1750	1610×500×750	560
DCSB4x3-11	54	238	35	47	4	15	1750	1570×500×700	510
DCSB3x2-12	28	123	45	40	3.1	11	1750	1370×480×700	450
DCSB3x2-11	25	110	35	41	3.1	7.5	1750	1360×480×700	400
Remark：1.The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3.2.Certificate: Ex dⅡ BT4。

We provide Solid Control Equipment, drilling mud system, shaker screen and solids control equipment spare parts, include Submersible Slurry Pump, Drilling Cutting Box, Jet Mud Mixer, Vacuum,Degaaser, Decanter Centrifuge, Mud Gas Separator.Our products have high quality and competitive prices,Please click here to visit our website and learn more.
