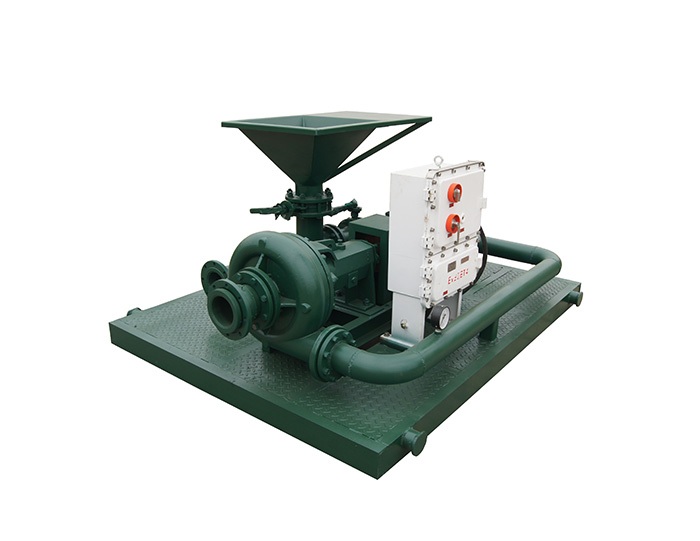

Jet mud mixer is a specialized solids control equipment used for configuring and aggravating drilling fluid , thus change the density , viscosity and pH of drilling fluid.

DC uses venturi tube combined with original jet nozzle created a new design of jet mud devices, not only simple in structure, but also have strong feasibility, which can meet the aggravation and configuration of drilling fluid in drilling solid control system from 1500m to 9000m.

We can also produce double jet mud mixers according to customers' requirements. Jet mud mixers produced by DC have the advantages of high mixing speed, safe and reliable performance, long service life and ect.

Model	DCSLH150-50	DCSLH150-45	DCSLH150-35	DCSLH100-25	DCSLH100-25
Treating Capacity	230-375m3/h1012-1650GPM	140-230m3/h616-1012GPM	120-210 m3/h528-924GPM	70-110 m3/h308-484GPM	30-60m3/h132-264GPM
Matching Pump	SB8 x6-13-55kW	SB6 x5-13-45kW	SB6 x5-12-30kW	SB5 x4-12-22kW	SB4 x3-12-15kW
Pressure	0.25~0.40Mpa
Feed Inlet	6〃（150）	6〃（150）	6〃（150）	4〃（100）	4〃（100）
Inlet Diameter	8〃	6〃	6〃	5〃	4〃
Outlet Diameter	5〃	5〃	5〃	4〃	4〃
Hopper Size	600x600mm	600x600mm	600x600mm	500x500mm	500x500mm
Mixing Speed	100kg/min	80kg/min	≤80kg/min	≤60kg/min	≤40kg/min
Mud Density	≤2.8g/cm3	≤2.4g/cm3	≤2.0g/cm3	≤2.0g/cm3	≤1.5g/cm3
Mud Viscosity	≤120s	≤120s	≤120s	≤80s	≤60s
Dimension	2200 x1760 x1250mm	2200 x1760 x1100mm	2200 x1760 x1100mm	1800 x1720 x890mm	1800 x1720 x890mm
weight	1600kg	1350kg	1280kg	950kg	900kg
Remark	The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3
