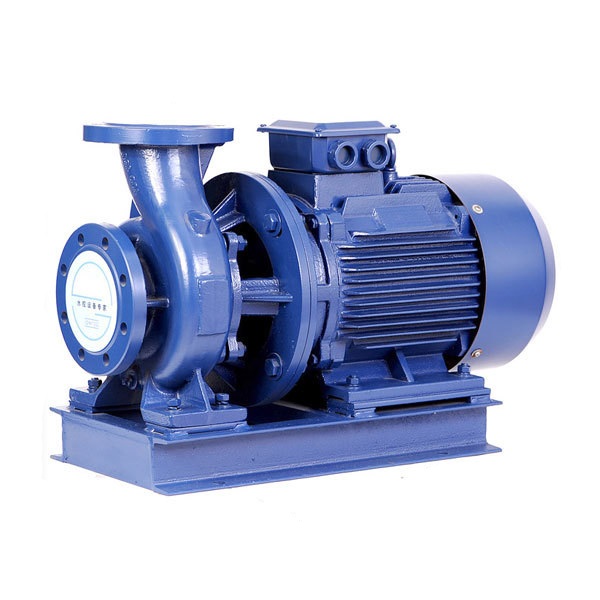

Jushi horizontal inline centrifugal pump
產品型號：ISW
產品分類：自動化設備/產業機械 / 其他產業機械 / 流體機械
產品特色
Product introduction:
1. ISWB fuel oil transfer pump horizontal inline centrifugal pump is a expliosion proof oil & chemical pump designed by Jushi.
2. It is used to transport the liquid containing no solid grain, corrosive and the viscosity of which is similar to oil.
3. The horizontal inline centrifugal pump is with the merits of compact structure, small volume, stable running, easy to mount and maintain.
4. Widely used in light & textile industry, petroleum, chemical industry, metallurgical industry, mining, medicine and synthetic fiber etc.
產品規格
Product introduction:
1. Zhejiang Jushi Pump Co.,Ltd ISWB fuel oil transfer pump horizontal inline centrifugal pump is a expliosion proof oil & chemical pump designed by Jushi.
2. It is used to transport the liquid containing no solid grain, corrosive and the viscosity of which is similar to oil.
3. The horizontal inline centrifugal pump is with the merits of compact structure, small volume, stable running, easy to mount and maintain.
4. Widely used in light & textile industry, petroleum, chemical industry, metallurgical industry, mining, medicine and synthetic fiber etc.
Product details:
|
Working Principle: |
Centrifugal |
|
Main applications: |
Oil |
|
Driver: |
Electric motor |
|
Power Specs: |
380/415V 3phase; 50hz/60hz |
|
Max.permissible fluid temperature: |
120°C(248°F) |
|
Type of connection: |
Flange |
|
Installation position: |
horizontal |
|
Casing material: |
Cast iron, Stainless steel/Cast iron, Stainless steel |
|
Shaft seal type: |
Mechanical seal |
|
Free passage: |
0.2mm |
|
Maximum drive rating: |
250KW(340HP) |
|
Maximum caliber: |
500mm(20inch) |
|
Maximum discharge-side pressure: |
1.6MPa(16bar) |
|
Maximum head: |
160m(524.8ft) |
|
Flow rate range: |
1.1-2400m3/h(4.8-10560US.GPM) |
Performance data:
|
Model |
Capacity |
Head |
Power |
Speed |
Eff. |
(NPSH)r |
Weight |
|
|
(m3/h) |
(L/s) |
(m) |
(KW) |
(r/min) |
(%) |
(m) |
(kg) |
|
|
15-80 |
1.1 |
0.3 |
8.5 |
0.18 |
2800 |
32.1 |
2.3 |
20 |
|
1.5 |
0.42 |
8 |
||||||
|
2 |
0.56 |
7 |
||||||
|
20-110 |
1.8 |
0.5 |
16 |
0.37 |
2800 |
32.4 |
2.3 |
25 |
|
2.5 |
0.69 |
15 |
||||||
|
3.3 |
0.91 |
13.5 |
||||||
|
20-125 |
1.8 |
0.5 |
21 |
0.75 |
2800 |
28.1 |
2.3 |
35 |
|
2.5 |
0.69 |
20 |
||||||
|
3.3 |
0.91 |
18.6 |
||||||
|
20-160 |
1.8 |
0.5 |
33 |
1.5 |
2950 |
18.8 |
2.3 |
38 |
|
2.5 |
0.69 |
32 |
||||||
|
3.3 |
0.91 |
30 |
||||||
|
25-110 |
2.8 |
0.78 |
16 |
0.55 |
2950 |
41.2 |
2.3 |
31 |
|
4 |
1.11 |
15 |
||||||
|
5.2 |
1.44 |
13.5 |
||||||
|
25-125 |
2.8 |
0.78 |
20.5 |
0.75 |
2950 |
37.5 |
2.3 |
35 |
|
4 |
1.11 |
20 |
||||||
|
5.2 |
1.44 |
18 |
||||||
|
25-125A |
2.5 |
0.39 |
17 |
0.75 |
2950 |
36.6 |
2.3 |
35 |
|
3.6 |
1 |
16 |
||||||
|
4.6 |
1.28 |
14.5 |
||||||
|
25-160 |
2.8 |
0.78 |
33 |
1.5 |
2950 |
29.9 |
2.3 |
44 |
|
4 |
1.11 |
32 |
||||||
|
5.2 |
1.44 |
30 |
||||||
|
25-160A |
2.6 |
0.72 |
29 |
1.1 |
2950 |
29 |
2.3 |
40 |
|
3.7 |
1.03 |
28 |
||||||
|
4.9 |
1.36 |
26 |
||||||
|
32-100 |
3.5 |
0.97 |
14.5 |
0.55 |
2950 |
45.9 |
2.3 |
35 |
|
4.5 |
1.24 |
12.5 |
||||||
|
5.3 |
1.47 |
11 |
||||||
|
32-125 |
3.5 |
0.97 |
22 |
1.1 |
2950 |
42.2 |
2.3 |
38 |
|
5 |
1.39 |
20 |
||||||
|
6.5 |
1.8 |
18 |
||||||
|
32-125A |
3.1 |
0.86 |
20 |
0.75 |
2950 |
41.2 |
2.3 |
37 |
|
4.5 |
1.25 |
16 |
||||||
|
5.8 |
1.61 |
10 |
||||||
|
32-160 |
3.5 |
0.97 |
34 |
1.5 |
2950 |
32.8 |
2.3 |
49 |
|
4.5 |
1.25 |
32 |
||||||
|
6 |
1.67 |
26 |
||||||
|
32-160A |
3.5 |
0.97 |
26.5 |
1.1 |
2950 |
31.8 |
2.3 |
43 |
|
4.5 |
1.25 |
25 |
||||||
|
6 |
1.67 |
19 |
||||||
|
32-200 |
3.5 |
0.97 |
53 |
3 |
2950 |
23.8 |
2.3 |
68 |
|
4.5 |
1.25 |
50 |
||||||
|
5.5 |
1.53 |
45 |
||||||
|
32-200A |
3 |
1.08 |
43 |
2.2 |
2950 |
22.9 |
2.3 |
58 |
|
4 |
1.11 |
40 |
||||||
|
5 |
1.17 |
37 |
||||||
|
… … |
||||||||
|
400-300 |
820 |
228 |
23 |
90 |
1480 |
78.2 |
6 |
1450 |
|
1080 |
300 |
20 |
||||||
|
1300 |
361 |
16 |
||||||
|
400-315 |
820 |
228 |
36.5 |
132 |
1480 |
81.1 |
6 |
1740 |
|
1080 |
300 |
32 |
||||||
|
1300 |
361 |
27 |
||||||
|
400-450 |
1500 |
416.7 |
23 |
160 |
980 |
80.6 |
6.5 |
2420 |
|
2000 |
555.6 |
20 |
||||||
|
2400 |
666.7 |
15 |
||||||
|
400-450A |
1400 |
388.9 |
20 |
132 |
980 |
79.3 |
6.5 |
1940 |
|
1860 |
516.7 |
17 |
||||||
|
2250 |
625 |
14 |
||||||
|
400-500 |
1500 |
416.7 |
34 |
250 |
980 |
82.8 |
6.5 |
2980 |
|
2000 |
555.6 |
32 |
||||||
|
2400 |
666.7 |
27 |
||||||
|
400-500A |
1400 |
388.9 |
30 |
200 |
980 |
81.9 |
6.5 |
2840 |
|
1860 |
516.7 |
28 |
||||||
|
2240 |
625 |
24 |
||||||
|
400-500B |
1300 |
361.1 |
26 |
160 |
980 |
80.9 |
6.5 |
2710 |
|
1750 |
486.4 |
24 |
||||||
|
2100 |
583.3 |
21 |
||||||
|
500-300 |
1000 |
277.8 |
23 |
110 |
1480 |
81.7 |
6 |
1800 |
|
1200 |
333 |
20 |
||||||
|
1450 |
403 |
16 |
||||||
|
500-315 |
1000 |
277.8 |
34.5 |
160 |
1480 |
80.9 |
6 |
2070 |
|
1200 |
333 |
32 |
||||||
|
1450 |
403 |
27 |
||||||
Parameter table above is only a part of whole. For more, please contact us directly.
