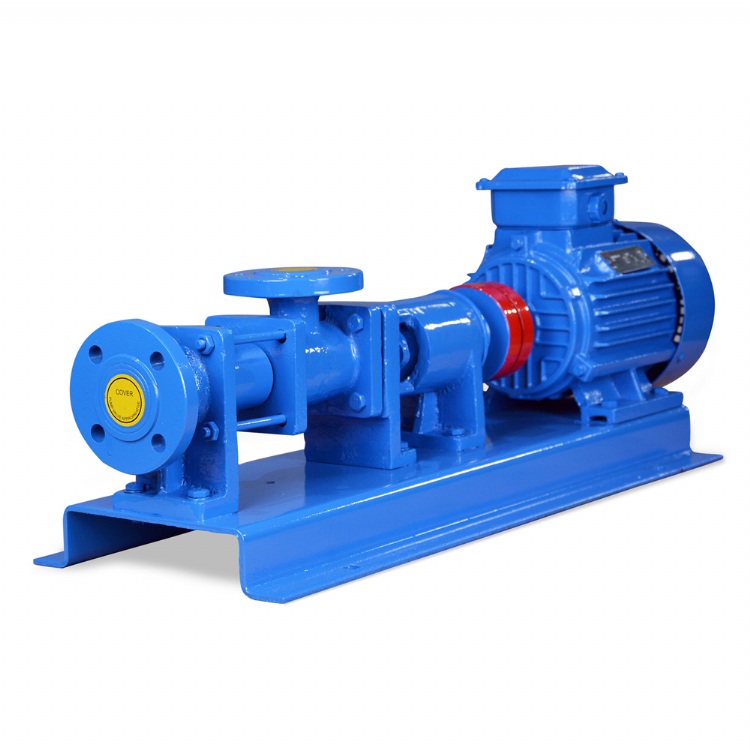

Jushi horizontal single screw pump
產品型號：G
產品分類：自動化設備/產業機械 / 其他產業機械 / 流體機械
產品特色
Product introduction:
1. horizontal single screw pump stainless steel industrial sludge pump is compact, small, easy to maintain, well-adapted to medium, stable flow, also with small pressure fluctuation and strong self-priming ability.
2. The single screw pump has metal lined with rubber stator, which is made of various elastic material, such as NBR rubber, fluoro rubber.
3. The screw pump could transfer high viscosity fluid and medium with hard suspended solid/fiber as well, such as slurry, dredge, sludge, slush, mud, etc.
4. The sludge pump may be equipped with gear box motor, electric magnetic speed adjustable motor, CVT motor, frequency inverter motor, etc.
5. Widely used in petroleum industry, medicine & daily use chemistary, food industry, construction industry, printing and papermaking, etc.
產品規格
Product introduction:
1. Zhejiang Jushi Pump Co.,Ltd horizontal single screw pump stainless steel industrial sludge pump is compact, small, easy to maintain, well-adapted to medium, stable flow, also with small pressure fluctuation and strong self-priming ability.
2. The single screw pump has metal lined with rubber stator, which is made of various elastic material, such as NBR rubber, fluoro rubber.
3. The screw pump could transfer high viscosity fluid and medium with hard suspended solid/fiber as well, such as slurry, dredge, sludge, slush, mud, etc.
4. The sludge pump may be equipped with gear box motor, electric magnetic speed adjustable motor, CVT motor, frequency inverter motor, etc.
5. Widely used in petroleum industry, medicine & daily use chemistary, food industry, construction industry, printing and papermaking, etc.
Product details:
|
Working Principle: |
Single Screw, Progressive Cavity |
|
Main applications: |
Sludge, Chemical |
|
Driver: |
Electric motor |
|
Power Specs: |
220/380/415V 3phase; 110/220/240V 1phase;50hz/60hz |
|
Max.permissible fluid temperature: |
120°C(248°F) |
|
Type of connection: |
Flange |
|
Installation position: |
Horizontal |
|
Casing parts material: |
Cast iron, Stainless Steel |
|
Shaft seal type: |
Mechanical seal, packing seal |
|
Free passage: |
6mm |
|
Maximum viscosity: |
1X106C.S.T |
|
Maximum drive rating: |
90KW(120HP) |
|
Maximum caliber: |
250mm(10inch) |
|
Maximum discharge-side pressure: |
1.2MPa(12bar) |
|
Flow rate range: |
0.8-150m3/h(3.5-660US.GPM) |
Performance data:
|
Model |
Capacity |
Pressure |
Speed |
Motor power |
Head |
(NPSH)r |
Inlet |
Outlet |
Max grain diameter |
Max fiber length |
|
(m3/h) |
(MPa) |
(r/min) |
(KW) |
(m) |
(m) |
(mm) |
(mm) |
(mm) |
(mm) |
|
|
G20-1 |
0.8 |
0.6 |
960 |
0.75 |
60 |
4 |
25 |
25 |
1.5 |
25 |
|
G20-2 |
1.2 |
1.5 |
120 |
|||||||
|
G25-1 |
2 |
0.6 |
960 |
1.5 |
60 |
40 |
32 |
2 |
30 |
|
|
G25-2 |
1.2 |
2.2 |
120 |
|||||||
|
G30-1 |
5 |
0.6 |
960 |
2.2 |
60 |
50 |
40 |
2.5 |
35 |
|
|
G30-2 |
1.2 |
3 |
120 |
|||||||
|
G35-1 |
8 |
0.6 |
960 |
3 |
60 |
65 |
50 |
3 |
40 |
|
|
G35-2 |
1.2 |
4 |
120 |
|||||||
|
G40-1 |
12 |
0.6 |
960 |
4 |
60 |
80 |
65 |
3.8 |
45 |
|
|
G40-2 |
1.2 |
5.5 |
120 |
|||||||
|
G50-1 |
20 |
0.6 |
720 |
5.5 |
60 |
4.5 |
100 |
80 |
5 |
50 |
|
G50-2 |
1.2 |
7.5 |
120 |
|||||||
|
G60-1 |
30 |
0.6 |
720 |
11 |
60 |
5 |
125 |
100 |
6 |
60 |
|
G60-2 |
1.2 |
15 |
120 |
|||||||
|
G70-1 |
40 |
0.6 |
720 |
11 |
60 |
150 |
125 |
8 |
70 |
|
|
G70-2 |
1.2 |
18.5 |
120 |
|||||||
|
G85-1 |
65 |
0.6 |
630 |
15 |
60 |
150 |
150 |
10 |
80 |
|
|
G85-2 |
1.2 |
30 |
120 |
|||||||
|
G105-1 |
100 |
0.6 |
500 |
30 |
60 |
200 |
200 |
15 |
110 |
|
|
G105-2 |
1.2 |
55 |
120 |
|||||||
|
G135-1 |
150 |
0.6 |
400 |
45 |
60 |
250 |
250 |
20 |
150 |
|
|
G135-2 |
1.2 |
90 |
120 |
