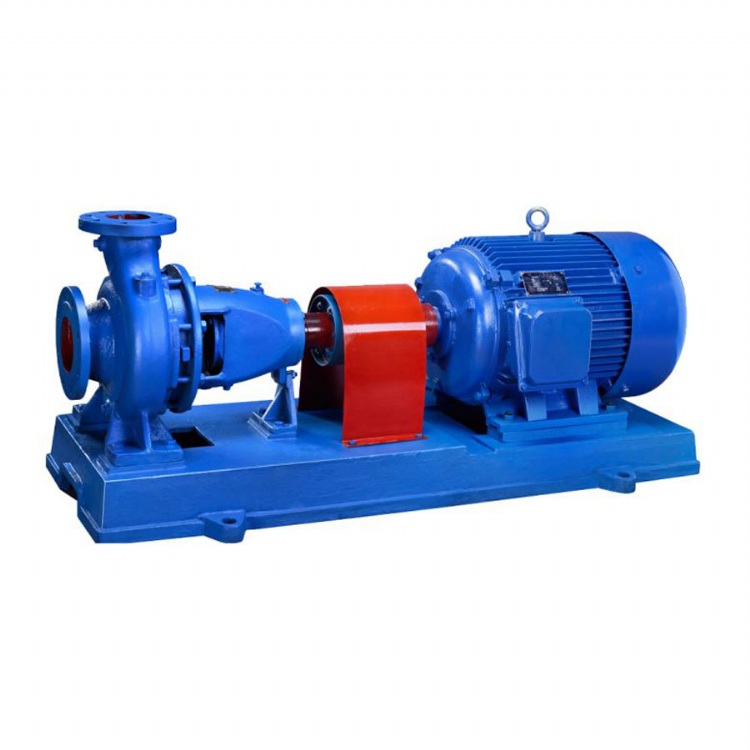

Jushi end suction stainless steel centrifugal pump
產品型號：IH
產品分類：自動化設備/產業機械 / 其他產業機械 / 流體機械
產品特色
Product introduction:
1. IH high quality anti-corrosion acid circulation pump end suction stainless steel centrifugal pump is excellent in performance, efficiency and easy in maintenance.
2. The centrifugal pump is made of high quality stainless steel material, which could be applied to transfer corrosive liquid (chemical) without solid and viscosity similar to water, just like sulfuric acid, hydrochloric acid, nitric acid, even base.
3. The normal IH pump could transfer medium which is -20°C~105°C(-4°F~ 221°F), while high temperature type reaches 300°C(572°F).
4. The acid circulation pump is widely used in chemistry, petroleum, metallurgy, electricity, papermaking, food, pharmacy, environmental protection, wastewater treatment, synthetic fiber or other industries.
產品規格
Product introduction:
1. Zhejiang Jushi Pump Co.,Ltd IH high quality anti-corrosion acid circulation pump end suction stainless steel centrifugal pump is excellent in performance, efficiency and easy in maintenance.
2. The centrifugal pump is made of high quality stainless steel material, which could be applied to transfer corrosive liquid (chemical) without solid and viscosity similar to water, just like sulfuric acid, hydrochloric acid, nitric acid, even base.
3. The normal IH pump could transfer medium which is -20°C~105°C(-4°F~ 221°F), while high temperature type reaches 300°C(572°F).
4. The acid circulation pump is widely used in chemistry, petroleum, metallurgy, electricity, papermaking, food, pharmacy, environmental protection, wastewater treatment, synthetic fiber or other industries.
Product details:
|
Working Principle: |
Centrifugal |
|
Main applications: |
Chemical |
|
Driver: |
Electric motor |
|
Power Specs: |
220/380/400/415V 3phase;50hz/60hz |
|
Max.permissible fluid temperature: |
105°C(221°F) |
|
Type of connection: |
Flange |
|
Installation position: |
Horizontal |
|
Casing parts material: |
Stainless Steel |
|
Shaft seal type: |
Mechanical seal |
|
Free passage: |
0mm |
|
Maximum drive rating: |
90KW(10HP) |
|
Maximum caliber: |
200mm(8inch) |
|
Maximum discharge-side pressure: |
1.25MPa(12.5bar) |
|
Maximum head: |
125m(410ft) |
|
Flow rate range: |
6.3-400m3/h(27.7-1760US.GPM) |
Performance data:
|
Model |
Speed |
Capacity |
Head |
Efficiency |
Power(KW) |
NPSH |
Weight |
||||
|
|
m3/h |
L/S |
|
(%) |
Shaft power |
Motor power |
|
|
|||
|
(r/min) |
(m) |
IS |
IH |
IS |
IH |
(m) |
(kg) |
||||
|
IH50-32-125 |
2900 |
7.5 |
2.08 |
22 |
47 |
43 |
0.96 |
1.09 |
2.2 |
2 |
32.5 |
|
12.5 |
3.47 |
20 |
60 |
51 |
1.13 |
1.33 |
2 |
||||
|
15 |
4.17 |
18.5 |
60 |
49 |
1.26 |
1.5 |
2.5 |
||||
|
1450 |
3.75 |
1.04 |
5.4 |
43 |
36 |
0.13 |
0.16 |
0.55 |
2 |
||
|
6.3 |
1.74 |
5 |
54 |
45 |
0.16 |
0.19 |
2 |
||||
|
7.5 |
2.08 |
4.6 |
55 |
44 |
0.17 |
0.21 |
2.5 |
||||
|
IH50-32-125A |
2900 |
11.2 |
3.1 |
16 |
58 |
50 |
0.84 |
1.02 |
1.5 |
2 |
32.5 |
|
1450 |
5.6 |
1.56 |
4 |
52 |
44 |
0.12 |
0.15 |
0.55 |
|||
|
IH50-32-160 |
2900 |
7.5 |
2.08 |
34.3 |
44 |
33 |
1.59 |
2.13 |
3 |
2 |
38.5 |
|
12.5 |
3.47 |
32 |
54 |
46 |
2.02 |
2.37 |
2 |
||||
|
15 |
4.17 |
29.6 |
56 |
50 |
2.16 |
2.45 |
2.5 |
||||
|
1450 |
3.72 |
1.04 |
8.5 |
35 |
29 |
0.25 |
0.3 |
0.55 |
2 |
||
|
6.3 |
1.74 |
8 |
48 |
40 |
0.29 |
0.34 |
2 |
||||
|
7.5 |
2.08 |
7.5 |
49 |
43 |
0.31 |
0.36 |
2.5 |
||||
|
IH50-32-160A |
2900 |
11.7 |
3.25 |
28 |
52 |
45 |
1.72 |
1.8 |
2.2 |
2 |
38.5 |
|
1450 |
5.9 |
1.64 |
7 |
46 |
39 |
0.24 |
0.27 |
0.55 |
|||
|
IH50-32-160B |
2900 |
10.8 |
3 |
24 |
50 |
|
1.36 |
|
2.2 |
2 |
38.5 |
|
1450 |
5.4 |
1.5 |
6 |
44 |
|
0.2 |
|
0.55 |
|||
|
IH50-32-200 |
2900 |
7.5 |
2.08 |
52.5 |
38 |
28 |
2.82 |
3.78 |
5.5 |
2 |
46 |
|
12.5 |
3.47 |
50 |
48 |
39 |
3.54 |
4.36 |
2 |
||||
|
15 |
4.17 |
48 |
51 |
43 |
3.84 |
4.56 |
2.5 |
||||
|
1450 |
3.7 |
1.07 |
13.1 |
33 |
23 |
0.41 |
0.57 |
0.75 |
2 |
||
|
6.3 |
1.74 |
12.5 |
42 |
33 |
0.51 |
0.65 |
2 |
||||
|
7.5 |
2.08 |
12 |
44 |
36 |
0.56 |
0.68 |
2.5 |
||||
|
IH50-32-200A |
2900 |
11.74 |
3.25 |
44 |
46 |
38 |
3.05 |
3.7 |
4 |
2 |
46 |
|
1450 |
5.9 |
1.64 |
11 |
40 |
32 |
0.44 |
0.55 |
0.75 |
|||
|
IH50-32-200B |
2900 |
10.8 |
3 |
38 |
44 |
37 |
2.54 |
3.1 |
4 |
2 |
46 |
|
1450 |
5.4 |
1.5 |
9.5 |
38 |
31 |
0.37 |
0.47 |
0.75 |
|||
|
IH50-32-250 |
2900 |
7.5 |
2.08 |
82 |
28.5 |
23 |
5.87 |
7.28 |
11 |
2 |
80 |
|
12.5 |
3.47 |
80 |
38 |
33 |
7.17 |
8.25 |
2 |
||||
|
15 |
4.17 |
78.5 |
41 |
36.5 |
7.83 |
8.79 |
2.5 |
||||
|
1450 |
3.75 |
1.04 |
20.5 |
23 |
17 |
0.91 |
1.23 |
1.5 |
2 |
||
|
6.3 |
1.74 |
20 |
32 |
27 |
1.07 |
1.27 |
2 |
||||
|
7.5 |
2.08 |
19.5 |
35 |
31 |
1.14 |
1.29 |
2.5 |
||||
|
IH50-32-250A |
2900 |
11.7 |
3.25 |
70 |
36 |
32 |
6.2 |
7 |
7.5 |
2 |
80 |
|
1450 |
5.9 |
1.64 |
17.5 |
30 |
26 |
0.94 |
1.08 |
1.5 |
|||
|
… … |
|||||||||||
|
IH200-150-250 |
1450 |
240 |
66.7 |
21.5 |
71 |
|
19.8 |
|
37 |
3.5 |
180 |
|
400 |
111.1 |
20 |
82 |
79 |
26.58 |
27.6 |
4.3 |
||||
|
460 |
127.8 |
17.5 |
80 |
|
27.4 |
|
5 |
||||
|
IH200-150-250A |
1450 |
374 |
87.2 |
17.5 |
80 |
78 |
22.29 |
22.9 |
30 |
4.3 |
|
|
IH200-150-250B |
1450 |
346 |
96.1 |
15 |
78 |
77 |
18.13 |
19.3 |
22 |
4.3 |
|
|
IH200-150-315 |
1450 |
240 |
66.7 |
37 |
70 |
67 |
34.6 |
34.7 |
55 |
3 |
245 |
|
400 |
111.1 |
32 |
82 |
79 |
42.54 |
44.1 |
3.5 |
||||
|
460 |
127.8 |
28.5 |
80 |
77 |
44.6 |
47.8 |
4 |
||||
|
IH200-150-315A |
1450 |
374 |
103.9 |
28 |
80 |
78 |
36.62 |
36.7 |
45 |
3.5 |
245 |
|
IH200-150-315B |
1450 |
346 |
96.1 |
24 |
78 |
77 |
29.02 |
30.8 |
37 |
3.5 |
|
|
IH200-150-400 |
1450 |
240 |
66.7 |
55 |
74 |
67 |
48.6 |
54.4 |
90 |
3 |
275 |
|
400 |
111.1 |
50 |
81 |
78 |
67.2 |
69.8 |
3.8 |
||||
|
460 |
127.8 |
45 |
76 |
75 |
74.2 |
78.5 |
4.5 |
||||
|
IH200-150-400A |
1450 |
374 |
103.9 |
44 |
79 |
77 |
56.76 |
58 |
75 |
3.8 |
275 |
|
IH200-150-400B |
1450 |
346 |
96.1 |
38 |
77 |
76 |
46.53 |
48.8 |
55 |
3.8 |
|
Parameter table above is only a part of whole. For more, please contact us directly.
