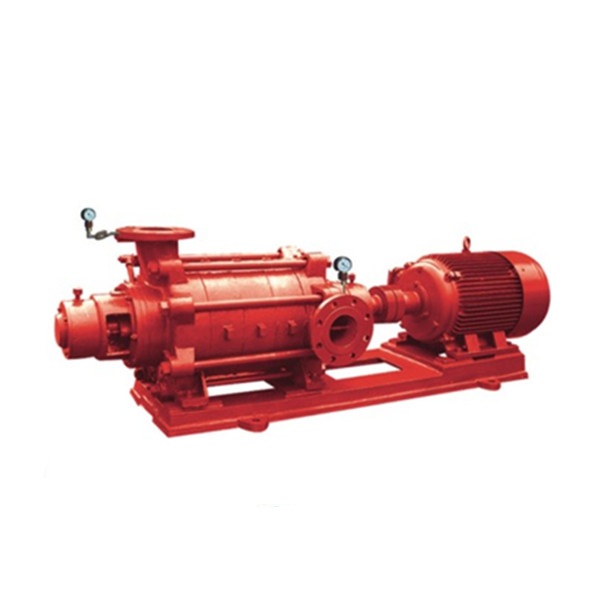

Jushi horizontal multistage irrigation centrifugal pump
產品型號：D
產品分類：自動化設備/產業機械 / 其他產業機械 / 流體機械
產品特色
Introduction:
1. D DG horizontal multistage irrigation centrifugal pump big flowrate high head water pump is compact structure, stable running, low noise, convenient operation.
2. The water pump is used to deliver clear water without solid particles or liquid similar to clear water physically and chemically with the temperature range from -20C~150 C(-4F~302F).
3. The shaft seal can be with soft packing or mechanical sealing. Pump material could be cast iron or cast steel according to customers' requirements.
4. Widely used in farm irrigation, boiler, water supply and drainage in mines, plants or cities, etc.
產品規格
Introduction:
1. Zhejiang Jushi Pump Co.,Ltd D DG horizontal multistage irrigation centrifugal pump big flowrate high head water pump is compact structure, stable running, low noise, convenient operation.
2. The water pump is used to deliver clear water without solid particles or liquid similar to clear water physically and chemically with the temperature range from -20C~150 C(-4F~302F).
3. The shaft seal can be with soft packing or mechanical sealing. Pump material could be cast iron or cast steel according to customers' requirements.
4. Widely used in farm irrigation, boiler, water supply and drainage in mines, plants or cities, etc.
Product details:
|
Working Principle: |
Centrifugal, Multistage |
|
Main applications: |
Water |
|
Driver: |
Electric motor |
|
Power Specs: |
220/380/415V 3phase;50hz/60hz |
|
Max.permissible fluid temperature: |
150C(302F) |
|
Type of connection: |
Flange |
|
Installation position: |
Horizontal |
|
Casing |
Cast iron, Stainless steel |
|
Shaft seal type: |
Mechanical seal; Packing gland |
|
Free passage: |
0.1 mm |
|
Maximum drive rating: |
1120kW(1495HP) |
|
Maximum caliber: |
250mm(10inch) |
|
Maximum discharge-side pressure: |
10.5MPa(105bar) |
|
Maximum head: |
1056m(3463.7ft) |
|
Flow rate range: |
3.75-540m3/h(16.5-2376US.GPM) |
Performance data:
|
Model |
Speed |
Capacity |
Head |
Efficiency |
Power(KW) |
(NPSH)r |
||
|
(r/min) |
(m3/h) |
(L/s) |
(m) |
(%) |
Shaft |
Motor |
(m) |
|
|
D |
2950 |
3.75 |
1.04 |
76.5 |
33 |
2.37 |
5.5 |
2 |
|
DG 6-25-3 |
6.3 |
1.75 |
75 |
45 |
2.86 |
2 |
||
|
|
7.5 |
2.08 |
73.5 |
47 |
3.19 |
2.5 |
||
|
D |
2950 |
3.75 |
1.04 |
102 |
33 |
3.16 |
7.5 |
2 |
|
DG 6-25-4 |
6.3 |
1.75 |
100 |
45 |
3.81 |
2 |
||
|
|
7.5 |
2.08 |
98 |
47 |
4.26 |
2.5 |
||
|
D |
2950 |
3.75 |
1.04 |
127.5 |
33 |
3.95 |
7.5 |
2 |
|
DG 6-25-5 |
6.3 |
1.75 |
125 |
45 |
4.77 |
2 |
||
|
|
7.5 |
2.08 |
122.5 |
47 |
5.32 |
2.5 |
||
|
D |
2950 |
3.75 |
1.04 |
153 |
33 |
4.73 |
11 |
2 |
|
DG 6-25-6 |
6.3 |
1.75 |
150 |
45 |
5.72 |
2 |
||
|
|
7.5 |
2.08 |
147 |
47 |
6.39 |
2.5 |
||
|
D |
2950 |
3.75 |
1.04 |
178.5 |
33 |
5.52 |
11 |
2 |
|
DG 6-25-7 |
6.3 |
1.75 |
175 |
45 |
6.67 |
2 |
||
|
|
7.5 |
2.08 |
171.5 |
47 |
7.45 |
2.5 |
||
|
D |
2950 |
3.75 |
1.04 |
204 |
33 |
6.31 |
15 |
2 |
|
DG 6-25-8 |
6.3 |
1.75 |
200 |
45 |
7.63 |
2 |
||
|
|
7.5 |
2.08 |
196 |
47 |
8.58 |
2.5 |
||
|
D |
2950 |
3.75 |
1.04 |
229.5 |
33 |
7.1 |
15 |
2 |
|
DG 6-25-9 |
6.3 |
1.75 |
225 |
45 |
8.52 |
2 |
||
|
|
7.5 |
2.08 |
220.5 |
47 |
9058 |
2.5 |
||
|
D |
2950 |
3.75 |
1.04 |
255 |
33 |
7.89 |
18.5 |
2 |
|
DG 6-25-10 |
6.3 |
1.75 |
250 |
45 |
9.53 |
2 |
||
|
|
7.5 |
2.08 |
245 |
47 |
10.63 |
2.5 |
||
|
D |
2950 |
3.75 |
1.04 |
280.5 |
33 |
8.68 |
18.5 |
2 |
|
DG 6-25-11 |
6.3 |
1.75 |
275 |
45 |
10.5 |
2 |
||
|
|
7.5 |
2.08 |
269.5 |
47 |
11.71 |
2.5 |
||
|
D |
2950 |
3.75 |
1.04 |
306 |
33 |
9.47 |
18.5 |
2 |
|
DG 6-25-12 |
6.3 |
1.75 |
300 |
45 |
11.44 |
2 |
||
|
|
7.5 |
2.08 |
294 |
47 |
12.78 |
2.5 |
||
|
|
||||||||
|
D |
1480 |
335 |
93.1 |
195 |
72 |
247.1 |
360 |
3.8 |
|
DG 450-60-3 |
450 |
125 |
180 |
76 |
289.2 |
4.9 |
||
|
|
500 |
139 |
171 |
78 |
298.5 |
6 |
||
|
D |
1480 |
335 |
93.1 |
260 |
72 |
329.4 |
500 |
3.8 |
|
DG 450-60-4 |
450 |
125 |
240 |
76 |
372.3 |
4.9 |
||
|
|
500 |
139 |
228 |
78 |
398 |
6 |
||
|
D |
1480 |
335 |
93.1 |
320 |
72 |
411.8 |
680 |
3.8 |
|
DG 450-60- 5 |
450 |
125 |
300 |
76 |
465.4 |
4.9 |
||
|
|
500 |
139 |
285 |
78 |
497.5 |
6 |
||
|
D |
1480 |
335 |
93.1 |
390 |
72 |
494.2 |
680 |
3.8 |
|
DG 450-60-6 |
450 |
125 |
360 |
76 |
558.5 |
4.9 |
||
|
|
500 |
139 |
242 |
78 |
597 |
6 |
||
|
D |
1480 |
335 |
93.1 |
455 |
72 |
576.5 |
850 |
3.8 |
|
DG 450-60-7 |
450 |
125 |
420 |
76 |
651.5 |
4.9 |
||
|
|
500 |
139 |
399 |
78 |
696.5 |
6 |
||
|
D |
1480 |
335 |
93.1 |
520 |
72 |
658.9 |
850 |
3.8 |
|
DG 450-60-8 |
450 |
125 |
480 |
76 |
744.6 |
4.9 |
||
|
|
500 |
139 |
456 |
78 |
796 |
6 |
||
|
D |
1480 |
335 |
93.1 |
585 |
72 |
741.2 |
1050 |
3.8 |
|
DG 450-60-9 |
450 |
125 |
540 |
76 |
837.7 |
4.9 |
||
|
|
500 |
139 |
513 |
78 |
823.6 |
6 |
||
|
D |
1480 |
335 |
93.1 |
650 |
72 |
930.8 |
1050 |
3.8 |
|
DG 450-60-10 |
450 |
125 |
600 |
76 |
995.1 |
4.9 |
||
|
|
500 |
139 |
570 |
78 |
|
6 |
||
