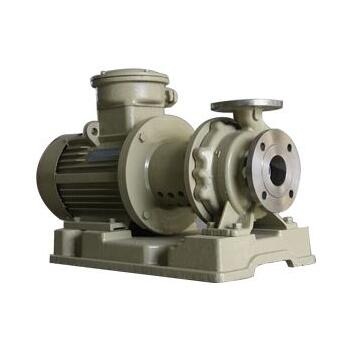

Jushi stainless steel magnetic chemical pump
產品型號：CQB
產品分類：自動化設備/產業機械 / 其他產業機械 / 流體機械
產品特色
1. CQB CQB-G high temperature stainless steel magnetic pump chemical industrial chlorine pump adopts the magnetism transmission principle and cooling installation to transport corrosive medium of high temperature without leakage.
產品規格
Introduction:
1. Zhejiang Jushi Pump Co.,Ltd CQB CQB-G high temperature stainless steel magnetic pump chemical industrial chlorine pump adopts the magnetism transmission principle and cooling installation to transport corrosive medium of high temperature without leakage.
2. The chlorine pump is with merits of compact structure, good corrosion resistance ability, reliable running and no leakage.
3. The magnetic pump is used to transfer acid, lye, oil, rare and precious liquid, venom, volatile, etc.
4. Widely used in petroleum chemical industry, pharmacy, smelt, electroplate, environmental protection, food industry, film processing, water treatment, etc.
Product details:
|
Working Principle: |
Centrifugal, Magnetic |
|
Main applications: |
Chemical |
|
Driver: |
Electric motor |
|
Power Specs: |
380/415 V 3phase 50hz/60hz |
|
Max.permissible fluid temperature: |
100°C(212°F)/280°C(536°F) |
|
Type of connection: |
Flange |
|
Installation position: |
Horizontal |
|
Casing/Inner parts material: |
Stainless steel/Stainless steel |
|
Shaft seal type: |
Static sealing |
|
Free passage: |
0 mm |
|
Maximum drive rating: |
55KW(75HP) |
|
Maximum caliber: |
100mm(4inch) |
|
Maximum discharge-side pressure: |
0.8MPa(8bar) |
|
Maximum head: |
80m(262.4ft) |
|
Flow rate range: |
3.2-100m3/h(14.1-440 US.GPM) |
Performance data:
|
Model |
Caliber(mm) |
Capacity |
Head |
Motor power |
Voltage |
|
|
Inlet |
Outlet |
(m3/h) |
(m) |
(KW) |
(Phase) |
|
|
CQB32-20-125 |
32 |
20 |
3.2 |
20 |
1.1 |
3phase |
|
CQB32-20-160 |
32 |
20 |
3.2 |
32 |
1.5 |
3phase |
|
CQB40-25-105 |
40 |
25 |
6.3 |
12.5 |
1.1 |
3phase |
|
CQB40-25-125 |
40 |
25 |
6.3 |
20 |
2.2 |
3phase |
|
CQB40-25-160 |
40 |
25 |
6.3 |
32 |
3 |
3phase |
|
CQB40-25-200 |
40 |
25 |
6.3 |
50 |
5.5 |
3phase |
|
CQB50-40-85 |
50 |
40 |
12.5 |
8 |
1.1 |
3phase |
|
CQB50-32-105 |
50 |
32 |
12.5 |
12.5 |
1.5 |
3phase |
|
CQB50-32-125 |
50 |
32 |
12.5 |
20 |
3 |
3phase |
|
CQB50-32-160 |
50 |
32 |
12.5 |
32 |
4 |
3phase |
|
CQB50-32-200 |
50 |
32 |
12.5 |
50 |
7.5 |
3phase |
|
CQB50-32-250 |
50 |
32 |
12.5 |
80 |
18.5 |
3phase |
|
CQB65-50-125 |
65 |
50 |
25 |
20 |
4 |
3phase |
|
CQB65-50-160 |
65 |
50 |
25 |
32 |
7.5 |
3phase |
|
CQB65-40-200 |
65 |
40 |
25 |
50 |
15 |
3phase |
|
CQB65-40-250 |
65 |
40 |
25 |
80 |
22 |
3phase |
|
CQB80-65-125 |
80 |
65 |
50 |
20 |
7.5 |
3phase |
|
CQB80-65-160 |
80 |
65 |
50 |
32 |
11 |
3phase |
|
CQB80-50-200 |
80 |
50 |
50 |
50 |
22 |
3phase |
|
CQB80-50-250 |
80 |
50 |
50 |
80 |
37 |
3phase |
|
CQB100-80-125 |
100 |
80 |
100 |
20 |
15 |
3phase |
|
CQB100-80-160 |
100 |
80 |
100 |
32 |
22 |
3phase |
|
CQB100-65-200 |
100 |
65 |
100 |
50 |
37 |
3phase |
|
CQB100-65-250 |
100 |
65 |
100 |
80 |
55 |
3phase |
NOTE: The performance of the CQB-G is the same as in the table.
