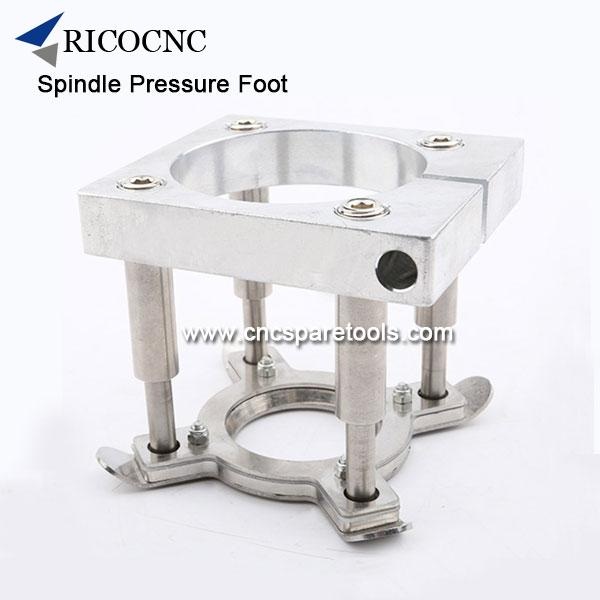

CNC Spindle Clamp Hold Downs Auto Pressure Foot Plates for CNC Router
Model: spindle diameter 125mm/120mm/100mm/87mm/85mm/80mm/75mm/73mm/65mm etc

For thin work piece processing, it is not easy to be fixed by clamps and screws. Usually workers press the work piece when the cnc router is working. It is very dangerous. Also the gas or the dust of the workpiece are very harmful to the workers' health, some will cause cancer. Now a good cnc router accessory tools will be very helpful--cnc router pressure foot hold down will achieve automotive clamp.
Fix the pressure plate on the cnc router spindle, so pressure foot move with the spindle, and press on the workpiece automatically, keep the workpiece not move up and down. Make the carving precision accurate, the carving product 100% qualified. No need people to press on the workpiece any more, save labor and good to health.

CNC Spindle Pressure Plates Applications:
Suitable for any kinds of Acrylic, thin aluminum board, PCB prototyping, printed circuit board routing, plastic board, PVC board, EVA board, double color board, MDF board, etc, especially for panels within 10mm thickness.

CNC Router Hold Down Features:
Material: Stainless steel
Diameter: 100mm (80mm/65mm, optional)
Outline square: 132*120mm
Height: 102mm
Bottom inner circle diameter: 49mm
Flexible distance: 28mm

Here is the video link about the cnc router auto pressure foot working, welcome to check.

Different spindle, the spindle diameter is different. So should choose suitable automatic pressure foot for your cnc router spindle.

Payment can be made by Western Union, Paypal, T/T.
Welcome your inquiries.
