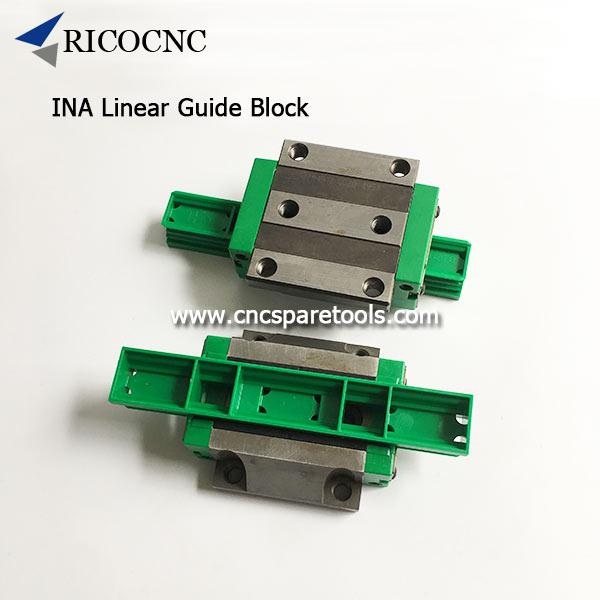

INA Linear Guide Blocks KWVE Linear Bearing Guide Trolley Carriage

This linear guide block is original Germany linear bearing from Schaeffler. INA linear carriage is widely used in high precision CNC machines, production lines.

RicoCNC supplies original INA linear slider blocks.
Such as
KWVE 25B G3 V1
KWVE 25B G2 V1
KWVE 25B G4 V1
KWVE 25B G3 V2
KWVE 30BL G1 V1
KWVE 30BL G3 V1
KWVE 35BL G1 V1
KWVE 35BL G3 V1

INA Linear Guides:
RWU..-E
standard carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication
RWU..-E-L
long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication
RWU..-E-H
high, narrow carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication
RWU..-E-HL
high, narrow, long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication
KWE
standard carriage for two-row linear recirculating ball bearing and guideway assembly
KWE..-H
high, narrow carriage for two-row linear recirculating ball bearing and guideway assembly
KWVE
four-row; design with anti-corrosion protection possible
KWVE..-B
four-row; design with anti-corrosion protection possible
KWSE
standard carriage for six-row linear recirculating ball bearing and guideway assembly
KWSE..-L
long carriage for six-row linear recirculating ball bearing and guideway assembly
KWSE..-H
high, narrow carriage for six-row linear recirculating ball bearing and guideway assembly
KWSE..-HL
high, narrow, long carriage for six-row linear recirculating ball bearing and guideway assembly
KWEM
standard carriage for miniature linear recirculating ball bearing and guideway assembly, corrosion-resistant, two-row
KWEM..-L
long carriage for miniature linear recirculating ball bearing and guideway assembly, corrosion-resistant, two-row
KWEM..-C
short carriage for miniature linear recirculating ball bearing and guideway assembly, corrosion-resistant, two-row
KWEM..-W
wide carriage for miniature linear recirculating ball bearing and guideway assembly, corrosion-resistant, two-row
KWEM..-WL
wide, long carriage for miniature linear recirculating ball bearing and guideway assembly, corrosion-resistant, two-row
KWEM..-WC
wide, short carriage for miniature linear recirculating ball bearing and guideway assembly, corrosion-resistant, two-row
KWME..-C
carriage for miniature linear recirculating ball bearing and guideway assembly, with anti-corrosion protection
TKVD
half guideway for linear recirculating ball bearing unit
TKVD
full guideway for linear recirculating ball bearing units
LFCL
hollow section carriage, clearance-free; corrosion-resistant design possible
LFL..-SF
open carriage, standard design, clearance-free; corrosion-resistant design possible
LFL..-E-SF
open carriage, wide, long design, clearance-free; corrosion-resistant design possible
LFLL..-SF
non-locating bearing carriage, clearance-free
LFKL..-SF
compact carriage, clearance-free; corrosion-resistant design possible
LFKL..-E-SF
compact carriage, wide, long design, clearance-free; corrosion-resistant design possible
LFKL..-EE-SF
compact carriage, wide, long design, clearance-free; corrosion-resistant design possible
LFDL..-B
bogie carriage; corrosion-resistant design possible
LFDL..-SF
bogie carriage; clearance-free; corrosion-resistant design possible

INA linear bearing guide ways
KWE15-H     28     34     54,5
KWE20-H     30     44     70,4
KWE25-H     40     48     80,5
KWE30-H     45     60     92,9

KWE35-H     55     70     106,1

INA KWVE 15 20 25 30 W WL B L H HL E N NL S SL
INA linear bearing guide ways
KWVE
four-row; design with anti-corrosion protection possible
KWVE..-B
four-row; design with anti-corrosion protection possible
KWVE..-B
standard carriage, four-row, full complement ball set
KWVE..-B-L
long carriage, four-row, full complement ball set
KWVE..-B-H
high, narrow carriage, four-row; corrosion-resistant design possible
KWVE..-B-HL
high, narrow, long carriage, four-row; corrosion-resistant design possible
KWVE..-B-EC
expanded interchangeability, short carriage, four-row; corrosion-resistant design possible
KWVE..-B-ESC
narrow, short carriage, four-row, full complement ball se
KWVE..-B-N
low carriage, four-row; corrosion-resistant design possible
KWVE..-B-NL
low, long carriage, four-row; corrosion-resistant design possible
KWVE..-B-S
narrow carriage, four-row; corrosion-resistant design possible
KWVE..-B-SL
narrow, long carriage, four-row; corrosion-resistant design possible
KWVE..-B-SN
narrow, low carriage, four-row; corrosion-resistant design possible
KWVE..-B-SNL
narrow, low, long carriage, four-row; corrosion-resistant design possible
KWVE..-B-HS
standard carriage, High Speed design, four-row, full complement ball set
KWVE..-B-N-HS
low carriage, High Speed design, four-row, full complement ball set
KWVE..-B-H-HS
high, narrow carriage, High Speed design, four-row, full complement ball set
KWVE..-B-S-HS
narrow carriage, High Speed design, four-row, full complement ball set
KWVE..-B-SN-HS
narrow, low carriage, High Speed design, four-row, full complement ball set

RicoCNC also supplies many other original bearings, linear cage, such as HIWIN, Franke, INA, NSK, Bosch Rexroth, SKF, THK, Rollon, TBI, PMI, ABBA, CSK, STAF, THK, etc.

RicoCNC also supplies a wide range of cnc spare parts, cnc tooling system, cnc cutters, etc.
All products are 100% original, welcome your inquiry.
