4.5kw Air Cooled Automatic Tool Change Spindle Chinese ATC Spindle Motor for CNC Router

After serveral years development, Chinese spindle proformance is more stable and becomes better and better. High-precision bearings, high precision, long life. Start from manual tool change spindles, now automatic tool change spindles also become popular. The electric spindle fan cooling with gas seal structure, automatic tool changer with ISO30 cone, fast automatic tool change.
4.5kw, 9Kw air-cooled automatic tool change spindle are widely used with woodworking ATC CNC router machines. Auto tool change improved the efficiency of the automated processing.

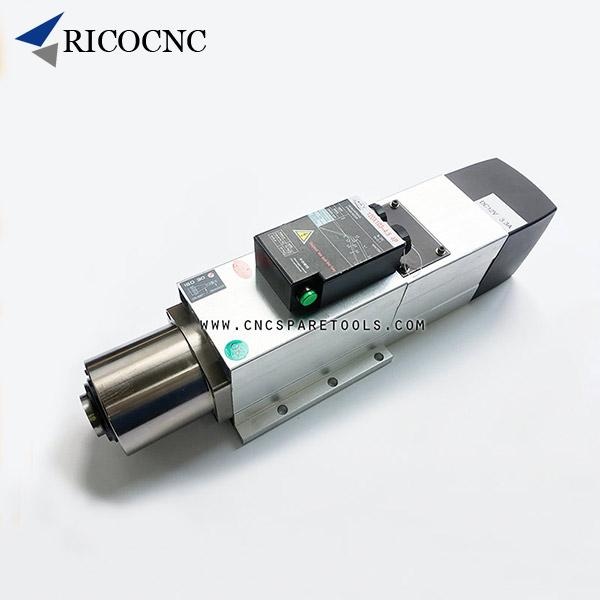

4.5kw Air Cooled Auto Tool Changer Spindle/ISO30 Cone
Spindle type: GDZ120*103-4.5
Speed: 24000rpm
Power: 4.5KW
Voltage: 380V/220V
Current: 9A/10.7A
Frequency: 800HZ
Joint of nose: ISO30
Cool: air cooling
Bearing type: 7008CP4*2+7006CP4*2
Weight: 21KG


GDZ143*133-9KW Air Cooling Spindle Motor with ISO30 Toolholder for CNC Router (Same as Italy HSD)

RicoCNC also supplies a range of cnc spare parts such as dust skirt for cnc router, cnc tool holder, cnc forks, tool lock seat, cnc machine dust extractor, hsk-e32 tool tightening fixture, foam mill frog tools, etc.

Welcome your inquiry.
