SBE-3J01
產品型號：SBE-3J01AGHL-18
產品分類：自動化設備/產業機械 / 機械用自動控制電路設計及安裝 / 可程式控制器
產品特色

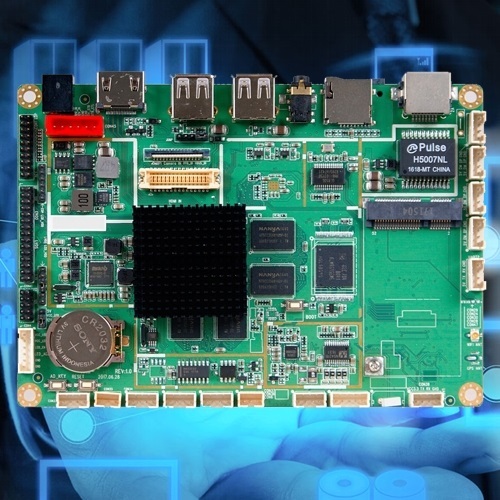

Industrial 3.5” Embedded SBC with Rock chip ARM Cortex A17 RK3288W, HDMI/LVDS/eDP, USB 2.0, Bluetooth and WIFI
產品規格
| CPU | Rock chip® ARM Cortex A17 RK3288W Quad‐core 1.8GHz SoC Processor | ||
|---|---|---|---|
| Chipset | SoC Integrated | ||
| System Memory | Onboard 1GB DDR3L 1333MHz, optional up to 4GB | ||
| Display | Mali-T764 GPU, support AFBC (1) HDMI up to 3840 x 2160 @60Hz (1) 24-bit dual channel LVDS up to 1920 x 1200 @60Hz (1) eDP up to 3840 x 2160 @30Hz |
||
| Ethernet | (1) Realtek RTL8211E-VB Gigabit Controller (1) RTL8723BS WIFI 802.11 b/g/n (2.4G) (1) Bluetooth 4.0 |
||
| USB | (4) USB 2.0 and (1) USB OTG ports | ||
| Storage | Onboard 8GB Flash ROM (1) TF card (Micro SD) socket up to 64GB |
||
| Audio | Built-in Audio | ||
| Serial Port | (4) RS232 serial ports | ||
Ordering Information
| SBE-3J01AGHL-18 | Rock chip ARM Cortex A17 RK3288W with 1GB DDR3L 1333MHz, 8GB Flash ROM, HDMI/LVDS/eDP, GBE LAN & WIFI & BT4.0 |
|---|
