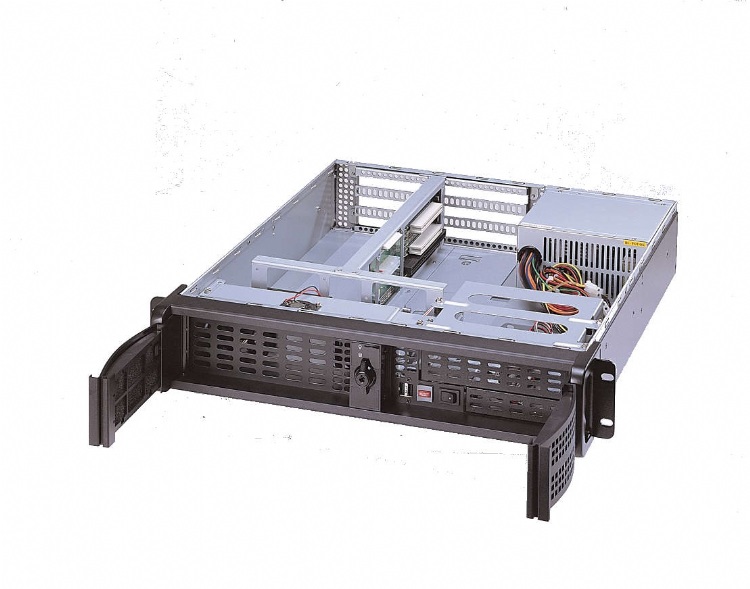

Industrial Rackmount Chassis RCK-203BA
產品型號：RCK-203BA
產品分類：自動化設備/產業機械 / 自動化設備 / 工業用機器人及週邊設備
產品特色
AICSYS Inc manufactured 2U Rackmount Chassis with (1) 5.25”and (2) 3.5” Drive Bays, with 4-slots PCIMG Butterfly Backplane, supports Full Size SBC, with Environmental Monitor Board
The RCK-203BA 2U Rack mount Chassis provides a classy and resourceful solution for a variety of Industrial applications using Full Size SBC through a (4) slot PICMG butterfly backplane. RCK-203BA offers one 5.25” and two 3.5” shock resistive drive bays. Two levels temperature management relies on two ball bearing 6cm fan that provide excellent cooling and System Environmental Monitor that warns users when the system temperature is above normal. One extra space for optional additional fan is provided for more heat sensitive application. RCK-203BA offers two 2.0 USB ports and supports standard PS/2 ATX Power Supplies
產品規格
- Standard 2U 19” Rackmount Chassis
- � Heavy Duty Steel with Ni plating
- � Lockable front doors with air filter to protect drives
- � 5.25”, (1) 3.5” FDD, (1) 3.5” internal HDD drive bays with shock-resistant drive brackets
- � Two USB 2.0 ports on front panel
- � Supports PICMG 1.0/1.3 Full Size SBC
- � PICMG 1.0 Backplane with (4) PCI slots
- � PICMG 1.3 Backplane with (2) PCIe x1, (1) PCIe x16 and (1) PCI
- � Supports Full Length PCI Expansion
- � System Environmental Monitor
� Extra space for one additional 6cm fan
