產品型號：1U 19" Rackmount Chassis

產品分類：自動化設備/產業機械 / 其他產業機械 / 變壓器、整流器自動化設備

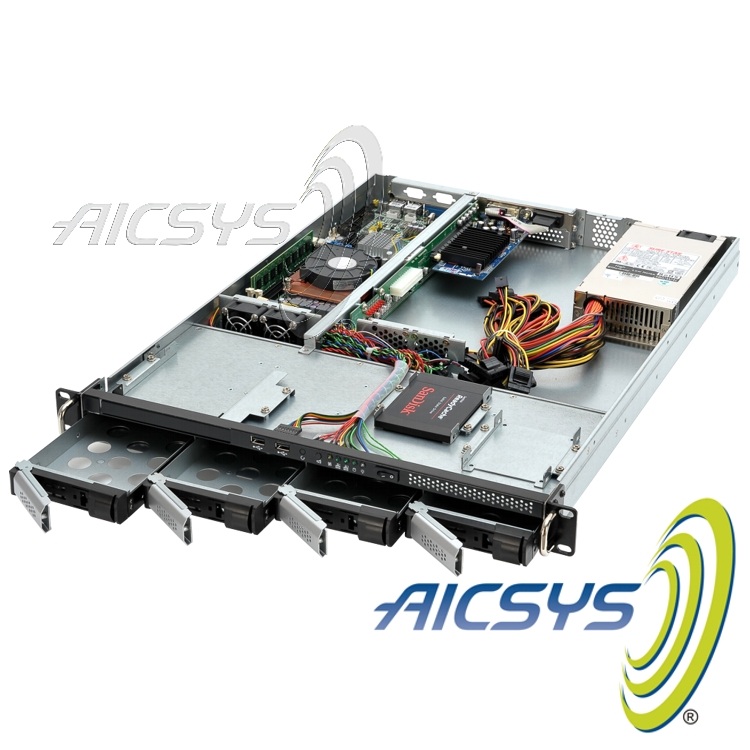

1U Rackmount Server Chassis for PICMG 1.3 SBC Board with 4 HDD Mobile racks and supports 1U single or redundant PSU

Board Support	Full size Single Board Computer PICMG 1.3
Expansion Slots	BPE-201E: PICMG 1.3 backplane with (1) PCIe x 16 slot BPE-201P: PICMG 1.3 backplane with (1) PCI slot
Drive Bays	(1) Slim ODD Drive Bay, (4) 3.5" SATA HDD mobile racks, (2) space for 2.5" SSD or HDD drives
Front Panel	On/Off Switch and Reset Switch, Power On/Off and HDD activity LEDs
Power Supply	Up to 520W single 1U or 400W 1U Redundant Power Supply
Cooling	(4) 40mm ball bearing fans
Dimensions	432(W) x 600(D) x 44(H) mm; 17(W) x 23.62(D) x 1.74(H) inches
Net/Gross Weight	7.2kg/15.87lbs

RCK-107BR-201E	1U Server Chassis with (1) PICMG 1.3 & (1) PCIe x 16 Slots Backplane
RCK-107BR-201P	1U Server Chassis with (1) PICMG 1.3 & (1) PCI Slots Backplane
RCK-107BR-201_-300W	1U Server Chassis with (1) PICMG 1.3 Backplane and 300W PSU
RCK-107BR-201_-460W	1U Server Chassis with (1) PICMG 1.3 Backplane and 460W PSU
RCK-107BR-201_-520W	1U Server Chassis with (1) PICMG 1.3 Backplane and 520W PSU
RCK-107BR-201_-400WR	1U Server Chassis with (1) PICMG 1.3 Backplane and 400W Redundant PSU
MR-C1D12	Mobile Rack for (1) 2.5" SATA Drive, Slim ODD form-factor
RBC-USB2P1M-01	USB port x 2 cable with bracket, L=100cm

PICMG 1.3 Backplane
PICMG 1.3 Backplane	BPE-201E	BPE-201P
Power Supply	ZIPPY P1G-6250P (250W)	ZIPPY P1G-6300P (300W)	PI-1460P (460W)	PI-1520P (520W)	ZIPPY Redundant M1S2-5400V4H (400W)
