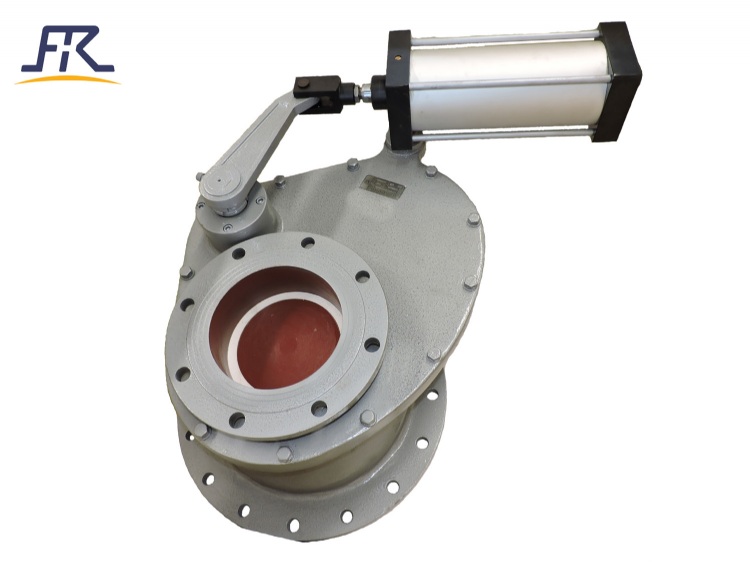

Pneumatic Rotary Type Ceramic Gate Valve
產品型號：FRZ643TC
產品分類：自動化設備/產業機械 / 其他產業機械 / 閥類
產品特色
1. The valves are sturdy and maintenance free enough to withstand the most severe conditions.
2.The sealing faces of the valve are made of toughened engineering ceramics with good abrasion resistance and prolonged service life.
3.Product with customized structural length and connection size is available.
4.The valve plate rotational motion of the valve disc can avoid the ash deposition on the sealing surface, so the valves have much longer service.
5.The rotation structure with shorter stroke makes and the whole of ceramic sealing faces of the valves, which are ensure a reliable sealing performance of the valve.
產品規格
Pneumatic Rotating Type Ceramic Gate Valve
FREE-Valve’s Pneumatic Rotating Type Ceramic Gate Valves are designed for pressurized and vacuum systems including dense and dilute phase pneumatic conveying systems, discharge and vent applications in steel plant and coal power. The whole of ceramic sealing faces of the valves are well ground and polished, which is ensure a reliable sealing performance of the valve.
Technical Specification:
1) Size Range: NPS4~NPS12,DN100~DN300
2) Pressure Range: Class 150 /PN6 /PN10
3) Applicable Temperature: 0~200℃
4) Connection Type: Flange
5) Sealing material: engineering ceramics
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, API609
8) Valve body : GB/T12224,ASME B16.34
Operating Mode: Pneumatic
Application:
FREE-Valve’s Pneumatic Rotating Type Ceramic Gate Valves is suitable for coal fired power plant, steel plant, cereals transport system, cement transport systems. In these applications, pneumatic conveying method is used to reduce manpower demand, and improve system efficiency and reliability, and is easy to realize automation.
