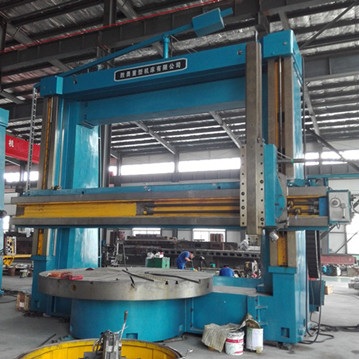

Vertical turning and boring machine
產品型號：CK5250
產品特色
echnical specification of Vertical turning and boring machine CK5250
1 Max.turning diameter 5000 mm
2 Maximum Height of workpiece 2000/2500/3000/3150/3650/4150 mm
3 Maximum Weight of workpiece 32/50/80 t
4 Table diameter 4200 /4500 mm
5 Speed range of table Stepless
6 Maximum torque 100 KN/min
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post -20-2630 mm
9 Rotation angle of tool post -15-+30° degree
10 Power of main motor 75/98 kw
11 Overall dimensions(L×W×H) 8610×6000×5600 mm
8610×6000×6100 mm
8610×6000×6600 mm
10930×6000×6800 mm
10930×6000×7300 mm
10930×6000×7800 mm
產品規格
echnical specification of Vertical turning and boring machine CK5250
1 Max.turning diameter 5000 mm
2 Maximum Height of workpiece 2000/2500/3000/3150/3650/4150 mm
3 Maximum Weight of workpiece 32/50/80 t
4 Table diameter 4200 /4500 mm
5 Speed range of table Stepless
6 Maximum torque 100 KN/min
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post -20-2630 mm
9 Rotation angle of tool post -15-+30° degree
10 Power of main motor 75/98 kw
11 Overall dimensions(L×W×H) 8610×6000×5600 mm
8610×6000×6100 mm
8610×6000×6600 mm
10930×6000×6800 mm
10930×6000×7300 mm
10930×6000×7800 mm
