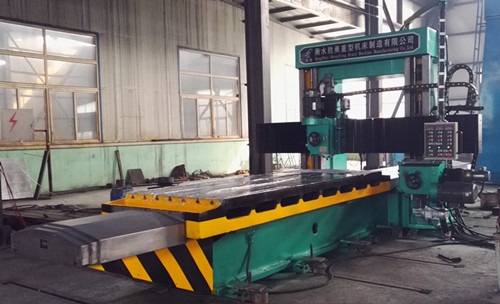

Planer double column cnc milling machine
產品型號：X2125
產品特色
Technical specification of 3 axis Planer double column cnc milling machine X2125
Maximum workpiece size: Long 6000mm
Maximum workpiece size: Width 2600mm
Maximum workpiece size: Height 1400mm
Table speed 30-1500mm/min
Number of milling head 2
Power of Milling head 5.5kw/7.5kw
Number of Side head 1
Power of Side head 5.5kw
Beam lifting speed 570mm/Minute
Machine maximum volume: Long 13000mm
Machine maximum volume: Width 4900mm
Machine maximum volume: Height 3700mm
Machine weight 43T
產品規格
Technical specification of 3 axis Planer double column cnc milling machine X2125
Maximum workpiece size: Long 6000mm
Maximum workpiece size: Width 2600mm
Maximum workpiece size: Height 1400mm
Table speed 30-1500mm/min
Number of milling head 2
Power of Milling head 5.5kw/7.5kw
Number of Side head 1
Power of Side head 5.5kw
Beam lifting speed 570mm/Minute
Machine maximum volume: Long 13000mm
Machine maximum volume: Width 4900mm
Machine maximum volume: Height 3700mm
Machine weight 43T
