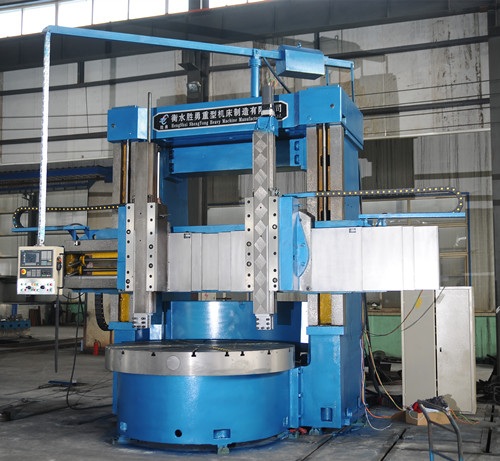

Technical specification of Vertical lathe VTL machines C5232

1 Maximum turning diameter 3150 mm

2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum Weight of workpiece 10/20 t

4 Table diameter 2830 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1735 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55 kw

11 Machine weight About 36-50 t
