產品規格

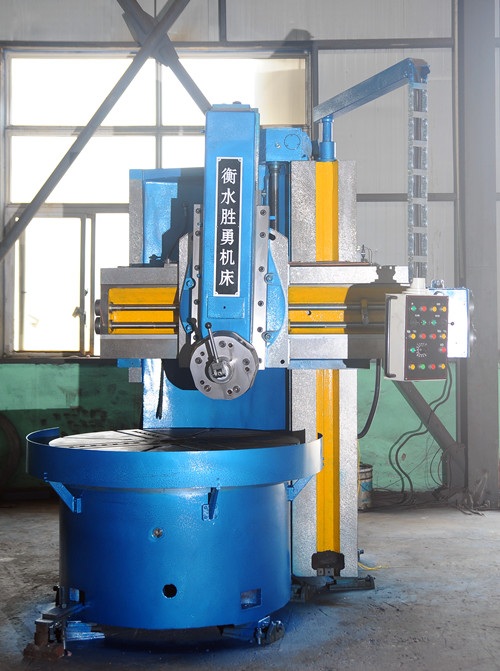

 CNC vertical turret lathe machine for sale C5112

1 Table diameter 1000 mm

2 Maximum turning diameter 1250 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 3.2 t

5 Speed change of table 6.3-200 r/min

6 rotation speed of work table 16 step

7 Feed rates 0.8-86 mm/min

8 Step 12 step

9 Horizontal travel of tool post 700 mm

Vertical travel of tool post 650 mm

10 Horizontal travel of side cutter bar 600 mm

Vertical travel of side cutter bar 800 mm

11 Crossrail travel 500 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 22 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw r/min

Revolutions 940/1440 r/min

15 Machine weight 9.5 t

16 Overall dimensions(L×W×H) 2460×2380×3000 mm
