產品規格

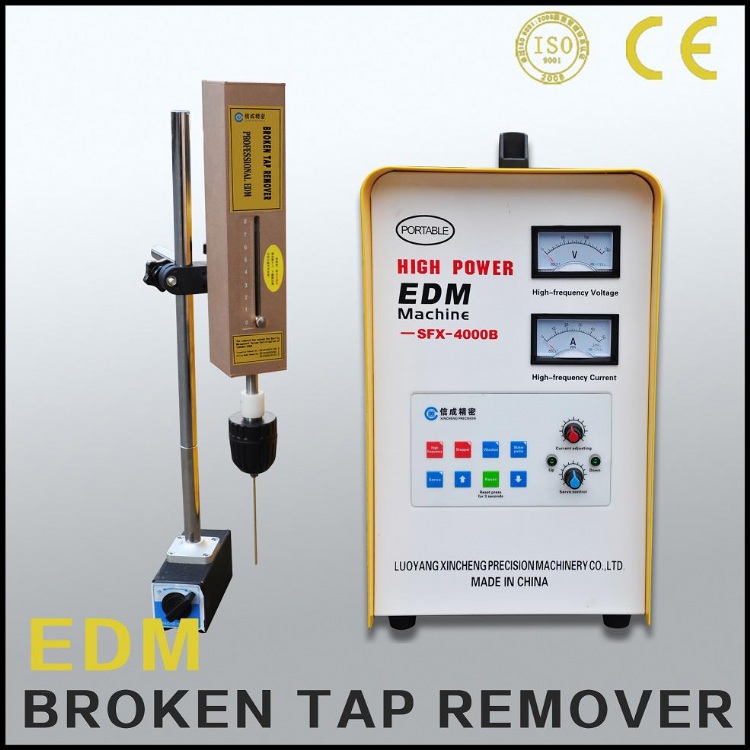

Name ----------------------- Broken tap remover SFX-4000B
Input Voltage (V)-------------- AC220V 50/60Hz
Secondary Output Voltage (V)--- 10-70
Electrode Diameter Range------- 2-24mm
Max Travel of working head (mm)- 70mm
Max Processing Speed(mm/ min)--- 2mm/min
Working Liquid ---------------- Tap water
Power Frequency  --------------- 50Hz
Remove Taps Sizes(mm)----------- more than M2
Machine Size (L*W*H mm) -------- 420*220*370mm
Package size ------------------- 528*325*460mm
Net weight(KG) ---------------- 24KG
Gross weight ----------------- 26KG
Function------------------------ Remove broken taps, dreamers and screws, process non-precision holes and marking.

Broken tap remover description:

1.Small size, light weight, convenient to operating;
2.Electrolytic Corrosion principle, no damage to workpiece
3.Magnetic base, easily to attract on the workpiece
4.Cooling fan installed keep the machine contiinue working
5.Working head is separated, helpful for complex machining
6.Alarm automatically for preset depth.
7.Tap water as working liquid, moderate power consumption.
8.Wide processing range: broken taps and drills above φ3mm.

Package:
Two layer of thick carton packaged, surrounded by foam filled to protact the machine, five straps tie up on the outer carton.

Delivery:
We usually arrange the goods within 72 hours after 100% advanced T/T deposit checked

Shipment:
The shipment is usually International express DHL / FEDEX / TNT...etc
