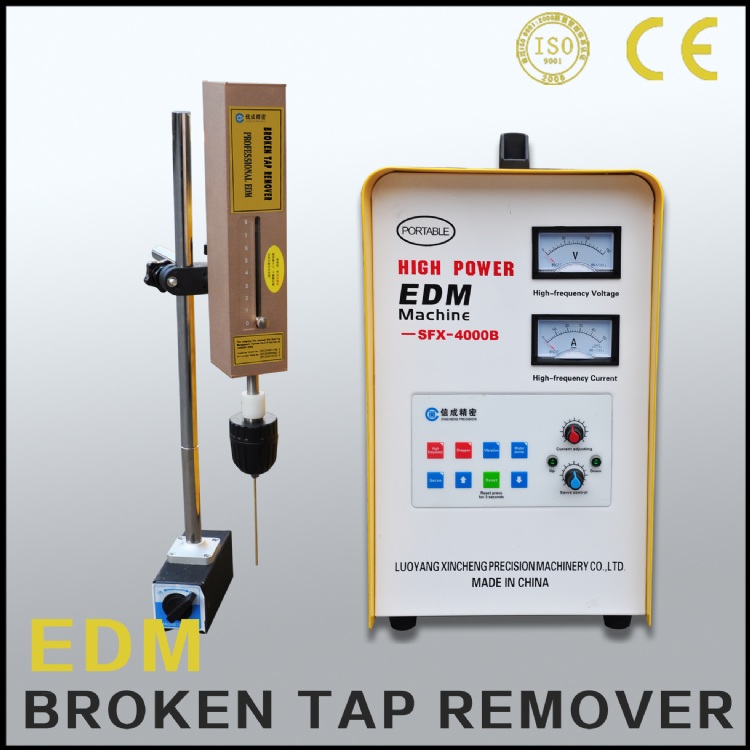

Portable machine edm
產品型號：SFX-4000B
產品分類：工具機產業機械 / 放電加工機 / 快速細孔放電加工機
產品特色
1. Portable edm broken tap remover abide by the principle of Electrolytic Corrosion to remove broken tools, no direct contact, thus, no external force and damage to the work piece;
2. Excellent Structure: Portable edm is convenient to carry due to small size and light weight, and shows its special superiority for large work pieces. Working head is separated from the machine and could rotate in any direction, which is helpful for complex machining;
3. Portability: Light weight; Small size; Carrying handle on the top of the power case;
4. Convenient Operation: The magnetic base could attract on work pieces to finish processing easily;
5. Vibrate work head: Vibrate of the electrode, greatly improved the processing efficiency;
6. Economical and Convenient: The working liquid is ordinary tap water; power consumption is moderate; the inlet pipe is detachable;
7. Wide Processing Range: Broken taps and drills (conductive material) above Ø2mm (Ø2mm is included);
8. Long Working Time: A cooling fan installed ensures the ventilation, which keeps the machine working continuously.
產品規格
Product Specification
Name ----------------------- Portable EDM SFX-4000B
Input Voltage (V)-------------- AC220/110V 50/ 60Hz
Secondary Output Voltage (V)--- 10-70
Electrode Diameter Range------- 2-24mm
Max Travel of working head (mm)- 70mm
Max Processing Speed(mm/ min)--- 2mm/min
Working Liquid ---------------- Tap water
Power Frequency --------------- 50Hz
Remove Taps Sizes(mm)----------- From M2 to M48
Machine Size (L*W*H mm) -------- 420*220*370mm
Package size ------------------- 528*325*460mm
Net weight(KG) ---------------- 24KG
Gross weight ----------------- 26KG
Function------------------------ Remove broken taps, bolts and screws, processing non-precision holes and marking.
Packing:
One set per carton, two layer of thick carton packaged, surrounded by foam filled to protact the machine, five straps tie up on the outer carton.
Delivery:
The products are usually be arranged within 72 hours after 100% advanced T/T deposit checked
Shipment:
The products are usually shipped by international express DHL / FEDEX / TNT...etc
Warranty:
First of all, the products will go through a thorough quality exam process to ensure that our devices won't have any glitch before delivery.
Secondly, the warranty period is usually around one year and during the period if there are any technical problems, we would repair them for free including the new parts that needed for repair.
PS: we would offer free repair only when the damages are caused by technical deficiencies of the product itself, not man made errors, namely, the damages were done by mishandling the machine.
