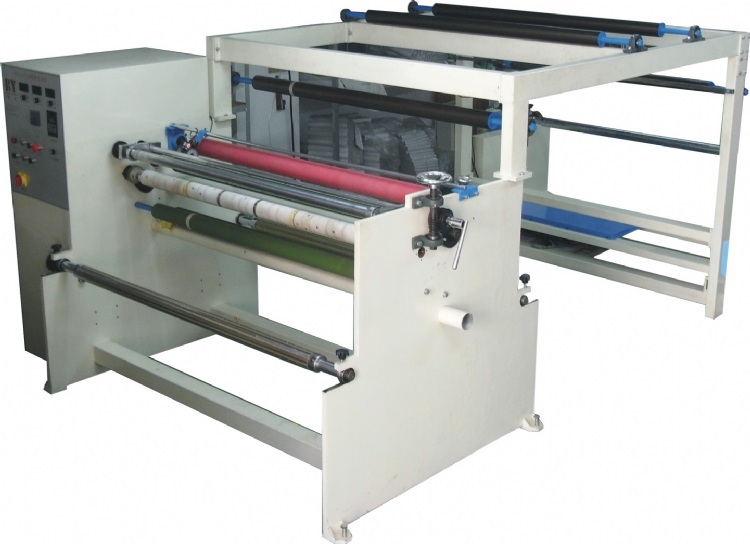

BYJX-FT361 Jumbo Roll Slitting Machine
產品型號：BYJX-FT361
產品特色
This machine adopts gantry structure, can complete slitting and rewinding for the entire jumbo roll. The rewinding length of the tape can reach 6000M
產品規格
Application fileds:
Applicable to all kinds of adhesive tape, paper tape with or without glue. Such as masking tape ,kraft paper, CPP, OPP etc..
Technical Parameters:
|
1.Material type:adhesive tape,papere tape |
2.Mechanical speed: 120M / min |
|
3.Cutting speed: 5-120M / min |
4.Maximum width: 1300MM |
|
5.The maximum unwinding diameter: ɸ1000MM |
6.The maximum winding diameter: ɸ1000MM |
|
7.Cutting accuracy: ± 0.1MM |
8.The total power: 6KW |
