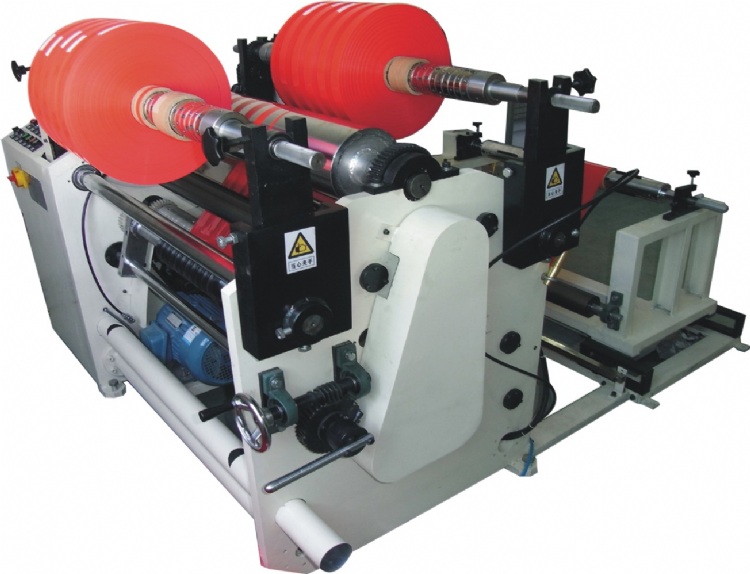

BYJX-FT331 PVC Slitting Machine
產品型號：BYJX-FT331
產品特色
The machine uses center pneumatic slip shaft, even tension ensured orderly rewinding of every shaft,rewinding mechanism combined the surface and center, with separate discharge rack and automatic hydraulic corrective device, high precision slitting by up and down round knife.
產品規格
BYJX-FT331 PVC Slitting Machine
Application Fields
Suitable for slitting and rewinding of paper, film category, PVC etc, especially for the material cutting of uneven thickness.
Technical Parameters:
|
1.Material type: film category, paper tape |
2.Mechanical speed: 120M/min |
|
3, Cutting speed: 5-100M/min |
4.Maximum width: 700MM |
|
5.Maximum unwinding diameter: ɸ1000MM |
6.Maximum rewinding diameter: ɸ350MM |
|
7.Cutting accuracy: ± 0.05MM |
8.The total power: 6KW
|
