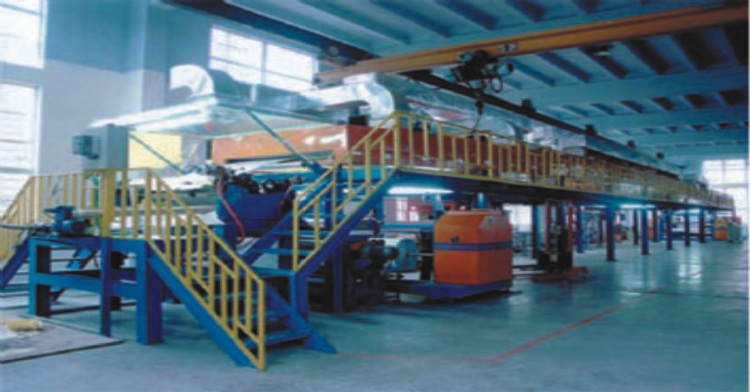

BYJX-TB1300 coating machine
產品型號：BYJX-TB1300
產品特色
Air pressure lift for single oven , with heating method of burning machine，thermal oil, steam and infrared ray etc. Coating method can be Comma, bar, mesh or other. PLC programmable control with touch screen .User-friendly design.
產品規格
BYJX-TB1300 coating machine
Application fields:
Applied in coating raw materials of exquisite electronic adhesive tape such as PET, cotton paper, Kapton, OPP etc.
Main components
|
1.Unwinding machine with two changeable axises:2 set |
2.Gluing machine: 1 pcs |
|
3. The main frame: 1 set |
4. Oven: 1 set |
|
5. Rewinding machine two changeable axises: 1 set |
6. Cooling wheel: 1pcs |
|
7. Printing and coating group: 1 set |
8. Stripping rewinding: 1 set |
|
9. Preheating system: 1 set |
10. Pipeline engineering (host) : 1 set |
Technical parameters:
|
1.Glum type: solvent / water based glue |
2.Mechanical speed: 150 m/min |
|
3.The glue coating speed: 20-120 - m/min |
4.Maximum width: 1000/1300/1600 mm |
|
5.The Max. unwinding diameter: ɸ1000mm |
6.The Max. rewinding diameter: ɸ 800 mm |
|
7.Oven length:2 m/section,a total of 12 sections |
8.Heating system: optional |
|
9.Ccoating average degree: ±0.02 mm |
10.Total power: 70 kw |
