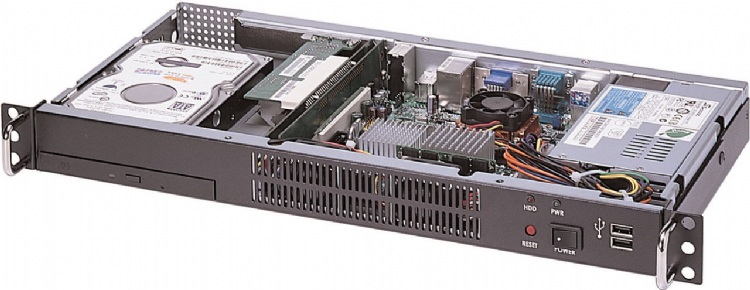

Industrial Rackmount Chassis NDS-102M
產品型號：NDS-102M
產品特色
1U Rackmount Chassis for Mini-ITX motherboard, (1) PCIe or (2) PCI expansion, up to (2) HDD, 200W PFC power supply
The NDS-102M Chassis is an Ultra conpact 1U chassis made of heavy-duty steel, designed for standard 19" rack cabinet, supports Mini-ITX motherboards (17cm x 17cm). With its compact size, the chassis still remains up to 2 PCI expansions through riser card and supports up to 2 PCI expansions through riser card and supports up to 2 HDD dirves. The front panel provides two USB 2.0 ports and optional two 40mm system fans for hight performationce system.
產品規格
◦1U 19" Rackmount Standard Chassis
◦Heavy duty Steel
◦Support Mini-ITX motherboard
◦Support up to 250W ATX Power Supply
◦Support up to (2) HDD with 3 selected options (see product introduction)
◦(2) 2.0 USB ports on front panel
◦(1) 4cm ball-bearing fan with one additional fan space
◦(1) PCIe x 1 Riser Card or (2) 32-bit PCI Riser Card
◦Wallmount and Rackmount kit supported
