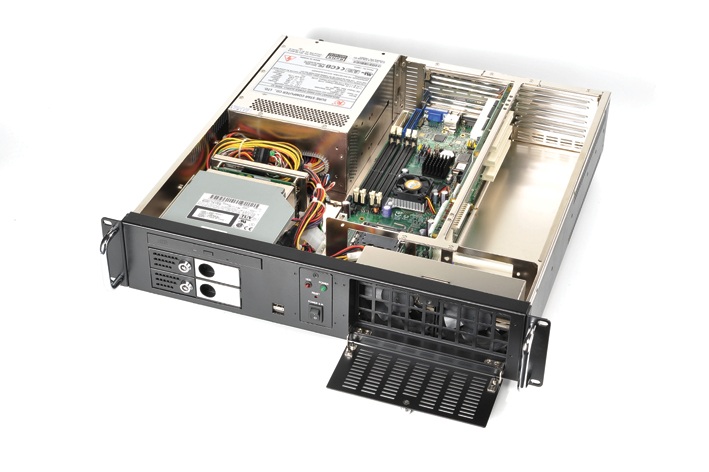

Industrial Computer Chassis RCK-203BR



產品型號：RCK-203BR

產品分類：自動化設備/產業機械 / 自動化設備 / 工業用機器人及週邊設備



立即線上詢問





產品特色



2U Rackmount chassis for Single Board Computer with (1) slim ODD , (2) 3.5" HDD with mobile rack, PICMG1.0/ 1.3 backplane and up to 600W ATX power supply

AICSYS has risen to the challenge of designing RCK-203BR; the ideal compact 2U chassis solution capable of a multitude of configurations. The RCK-203BR is the newest addition to the 2U Rackmount Chassis Product Line. With a depth of only 450mm (17 inches), the RCK-203BR is ideal for applications that require a shorter rack depth or even a vehicle mount. Both PICMG 1.0 and PICMG 1.3 Backplanes can be installed into the RCK-203BR for use with a wide variety of PCI as well as PCIe SBC's and Add-on Cards resulting in a very robust system.

Although the RCK-203BR has a small footprint, it is constructed from Heavy Duty Steel and combined with the two 8CM Ball Bearing Fans, the excellent airflow and the rugged design ensure for a stable platform. When used with the optional Mini-Redundant ATX Power Supply, the RCK-203BR is a fault tolerant solution ensuring for 7/24 reliability. For storage the RCK-203BR can be figured for one Slim 5.25" CD or DVD ROM and two 3.5" SATA HDD's. The RCK-203BR Chassis is truly a powerhouse in a small, rugged form factor ideal for any application from Firewall Server to Mobile Surveillance System. AICSYS can provide you with a complete solution based around our RCK-203BR chassis and one of our Single Board Computers, for additional information contact our Sales Department today.
