Wire edm machine spark erosion machine

Product Description
1.Small size, light weight, convenient to operate;
2.Electro eroding principle, no damage to work piece;
3.Magnetic base, easily to attract on the small and large workpiece;
4.Cooling fan installed keep the machine continue working;
5.Separated work head design, helpful for complex machining;
6.Alarm automatically for preset depth;
7.Vibrate motor made the working speed increased by 3 times
8.Tap water as working liquid, moderate power consumption;
9.Wide processing range, remove broken taps and bolts sized φ2mm to φ48mm.

Product Specification

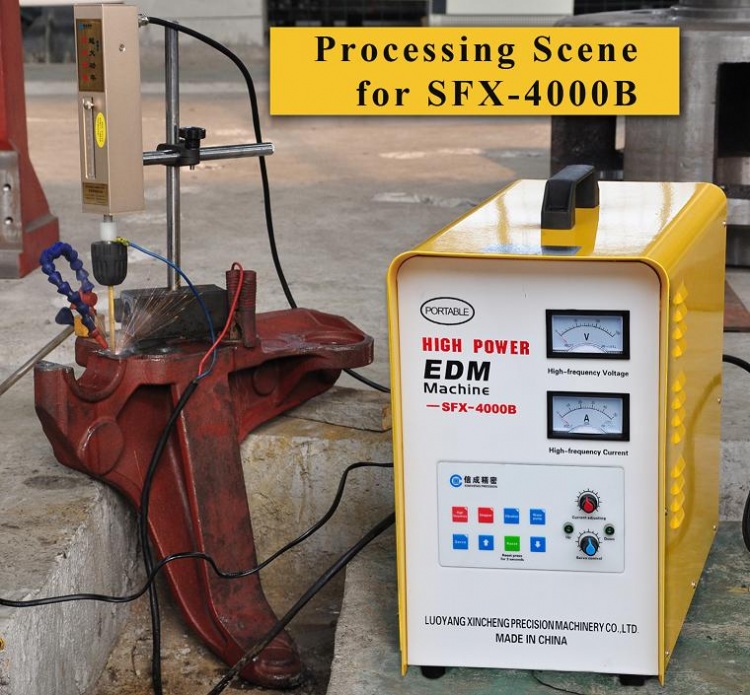

Name    ----------------------- Portable EDM SFX-4000B
Input Voltage (V)-------------- AC220V 50/ 60Hz
Secondary Output Voltage (V)--- 10-70
Electrode Diameter Range------- 2-24mm
Max Travel of working head (mm)- 70mm
Max Processing Speed(mm/ min)--- 2mm/min
Working Liquid ---------------- Tap water
Power Frequency     --------------- 50Hz
Remove Taps Sizes(mm)----------- From M2 to M48
Machine Size (L*W*H mm)    -------- 420*220*370mm
Package size ------------------- 528*325*460mm
Net weight(KG) ---------------- 24KG
Gross weight ----------------- 26KG
Function------------------------ Remove broken taps, bolts and screws, processing non-precision holes and marking.

Packing:
One set per carton, two layer of thick carton packaged, surrounded by foam filled to protect the machine, five straps tie up on the outer carton.

Delivery:
The products are usually be arranged within 72 hours after 100% advanced T/T deposit checked

Shipment:
The products are usually shipped by international express DHL / FEDEX / TNT...etc

Warranty:
The warranty period is usually around one year and during the period if there are any technical problems, we would repair them for free including the new parts that needed for repair.
PS: we would offer free repair only when the damages are caused by technical deficiencies of the product itself, not man made errors, namely, the damages were done by mishandling the machine.
