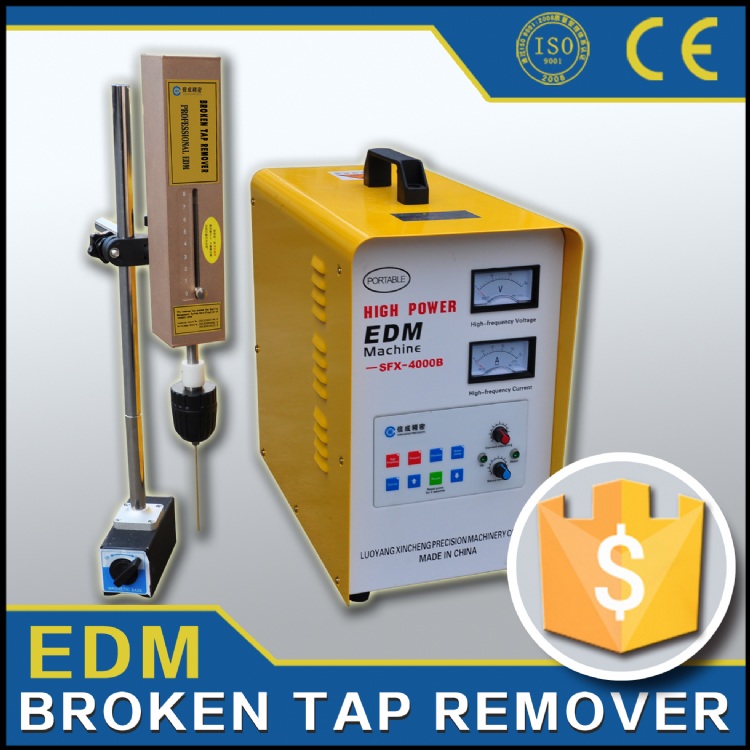

Portable edm broken tap remover
產品型號：SFX-4000B
產品分類：工具機產業機械 / 放電加工機 / 可程式控制放電加工機
產品特色
1.Small size, light weight, convenient to operate;
2.Electro eroding principle, no damage to work piece;
3.Magnetic base, easily to attract on the small and large workpiece;
4.Cooling fan installed keep the machine continue working;
5.Separated work head design, helpful for complex machining;
6.Alarm automatically for preset depth;
7.Vibrate motor made the working speed increased by 3 times
8.Tap water as working liquid, moderate power consumption;
9.Wide processing range, remove broken taps and bolts sized φ2mm to φ48mm.
產品規格
Product Specification
Name ----------------------- Portable EDM SFX-4000B
Input Voltage (V)-------------- AC220V 50/ 60Hz
Secondary Output Voltage (V)--- 10-70
Electrode Diameter Range------- 2-24mm
Max Travel of working head (mm)- 70mm
Max Processing Speed(mm/ min)--- 2mm/min
Working Liquid ---------------- Tap water
Power Frequency --------------- 50Hz
Remove Taps Sizes(mm)----------- From M2 to M48
Machine Size (L*W*H mm) -------- 420*220*370mm
Package size ------------------- 528*325*460mm
Net weight(KG) ---------------- 24KG
Gross weight ----------------- 26KG
Function------------------------ Remove broken taps, bolts and screws, processing non-precision holes and marking.
Application:
1.Fast removing broken taps, drills, screw without damage to the work-piece;
2.Processing non-precision holes and marking on metal materials such as hardened steel, hard alloy steel and copper.
Packing:
One set per carton, two layer of thick carton packaged, surrounded by foam filled to protect the machine, five straps tie up on the outer carton.
Delivery:
The products are usually be arranged within 72 hours after 100% advanced T/T deposit checked
Shipment:
The products are usually shipped by international express DHL / FEDEX / TNT...etc
Warranty:
The warranty period is usually around one year and during the period if there are any technical problems, we would repair them for free including the new parts that needed for repair.
PS: we would offer free repair only when the damages are caused by technical deficiencies of the product itself, not man made errors, namely, the damages were done by mishandling the machine.
Contact: Amy
Phone/Whatsapp: +86 18637970271
Skype: amynie2015
