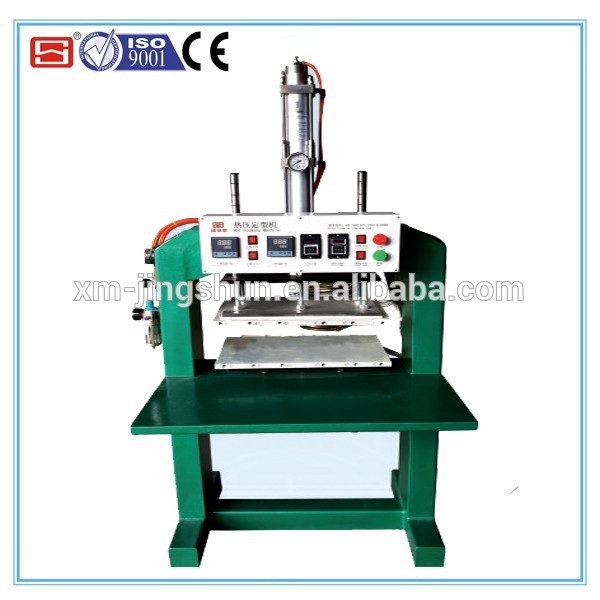

Pneumatic Press Embossing Machine for Shoes Insoles
產品型號：JRY-61/Z
產品特色
This machine is suitable for hot forming & embossing of open-celled polyurethanes (PU), leather, PE foam, laminated sponge, knitting cotton, PVC and PU coated fabrics, upholstery fabrics,upholstery leather, soft plastic products, such as shoe insole, shoes upper, shoes face, shoes pad, handbags/backpacks, PU phone cover and so on.
產品規格
Features
1. CE certificate, long lifespan.
2. Single working station, Max 5000kg pressure
3. Four-pillar structure design can sustain huge and uniform presure, high tension resistance.
4. Electric control panel provides manual & easy operation with Emergency Stop button and START button.
5. Air Hydraulic Booster Cylinder pressure system, short time pressure output, stable & easy operation with excellent forming effect.
6. Seperate Power OFF/ON selector switches for Upper and Lower Plates.
7. Seperate digital timers(2), seperate OFF/ON selector switches(2) for Pneumatic pressure and Hydraulic Booster Pressure.
8. Aluminium alloy pressing plate with electric heating device, equipped with digital temperature controllers to adjust upper and lower heating plate separately, temperature is adjustable according to processing requirement for perfect forming & embossing.
9. Easy maintenance, after sales service is very seldom because of reliable & stable quality.
| Technical Data | |
| Model | JRY-61/Z |
| Power supply | Three-phase 380V |
| Max output power | 6KW |
| Max. Pressure | 5000kgs |
| Plate size (mm) | 350*500mm |
| Working stroke (mm) | 250mm |
| Profile Size (L*W*H) | 900*600*1800mm |
| Ref. Net weight: | 80kg |
