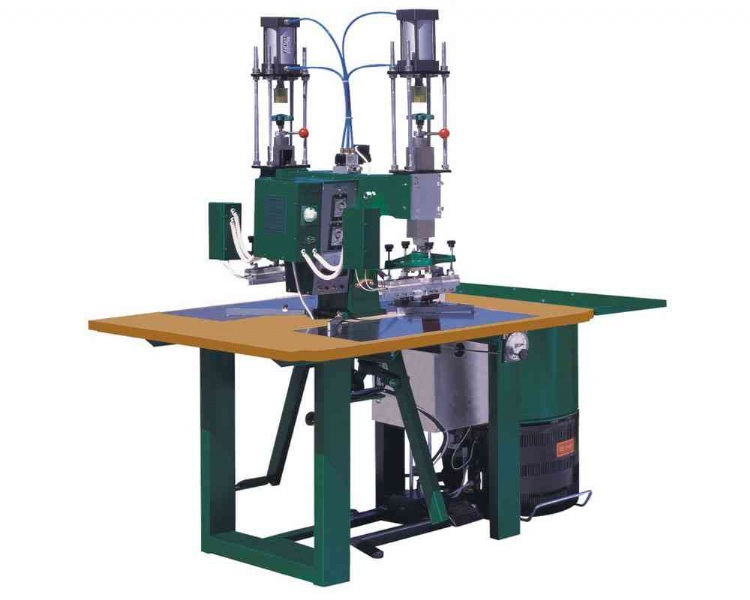

High Frequency PVC welding Machine
產品型號:JGP-4T/QR, JGP-5T/QR.
產品分類:塑橡膠產業機械 / 塑膠機械 / 高週波塑膠熔接機
產品特色
This machine is commonly used in welding thermoplastic of pure PVC, or more than 30% pvc components, automotive upholstery, logo embossing, stationery, raincoat, small inflatable toys, pvc bag sealing, water bag, blood bags, medical pvc bags, medical bladders, shoes upper, face, insole, shower curtain, hot stamping process, seat cushion, packing bags etc.
產品規格
Features
1. Foot pedal & Pneumatic in twin operation.
2. Equiped with electric-heated device for helping high frequency sealing process,
3. Cost effective, double welding heads with two independent operation stations coupled to a common RF gererator, flexible operation.
4. This high efficient machine features antispark, anode overload protection, independent weld timer, power setting and counter for each operator station.
5. High frequency oscillation tube with vibration box, more reliable and stable in output.
6. Adopt international standard industrial band, stable output frequency, tiny interference to external devices.
7. Great for plastic welding and embossing with trimming function.
Model | JGP-4T/QR |
HF output power | 4KW |
Oscillation frequency | 40.68MHZ |
Power supply | 1ØAC220V,3ØAC380V or customizable |
Input power | 6.5KVA |
Protector | Standard spark protection/Overload current relay |
Oscillation tube | E3062 |
Electrode size | 300*650mm |
Dimensions (L*W*H) | 1550*1140*1450mm |
Press stroke | 60mm |
Ref. Net weight | 270kg |
Model | JGP-5T/QR |
HF output power | 5KW |
Oscillation frequency | 40.68MHZ |
Power supply | 1ØAC220V,3ØAC380V or customizable |
Input power | 8KVA |
Protector | Standard spark protection/Overload current relay |
Oscillation tube | 7T85RB |
Electrode size | 300*650mm |
Dimensions (L*W*H) | 1550*1140*1450mm |
Press stroke | 60mm |
Ref. Net weight | 285kg |
