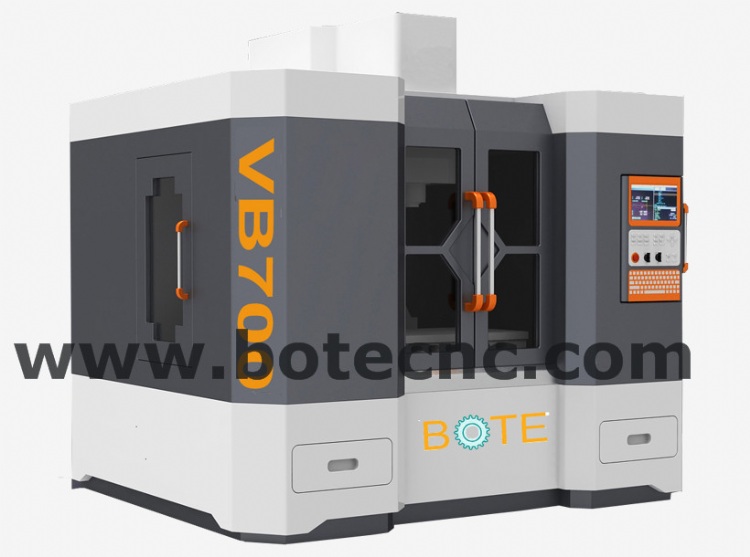

CNC Milling Machining Center VB700
產品型號：VB700
產品特色
3 AXES cnc milling machine,4 axes cnc milling machine 5 axes cnc milling machine
Quality
The outstanding machine performance relies on precision parts. To ensure each part achieves the highest accuracy and dependability, our Q.C department conducts 100% parts inspection.This combines with the use of a full series sophisticated inspection instrument to ensure only best quality parts fitted on all machines.
1-----Each spindle motor is subject to dynamic balance calibration before it been assembled to machine.With this process applied minimum spindle motor chattering maximum machining accuracy can be achieved.
2-----Renishaw Laser calibration system ensure machine accuracy.
3-----Renishaw Ball bar system,circular test ensures machine geometry
產品規格
Please visit our website for more information: www.botecnc.com
|
|
VB700---Box guideways in 3 axes |
|
|
Travel |
X axis |
700mm |
|
Y axis |
450mm |
|
|
Z axis |
500mm |
|
|
Spindle nose to table |
150-650m |
|
|
Spindle nose to column |
485mm |
|
|
Feed |
max X rapid feed |
20 m/min |
|
max Y rapid feed |
20 m/min |
|
|
max Z rapid feed |
20 m/min |
|
|
Cutting feed |
1-10m/min |
|
|
Torque |
X:10 N.m Y:10 N.m Z:10 N.m |
|
|
Table |
Table size |
1000*400mm |
|
Max load |
450Kg |
|
|
Table surface to floor |
840mm |
|
|
T slot |
3*18*125mm |
|
|
Spindle |
Type |
Belt |
|
Speed |
8000 rpm |
|
|
Spindle taper |
BT40 |
|
|
Main motor |
5.5KW |
|
|
Accuracy |
Accuracy (JIS) |
0.005/300mm |
|
Repeatability (JIS) |
0.003mm |
|
|
Other |
Weight |
3800 Kgs |
|
Size |
2500*2100*2400 |
|
