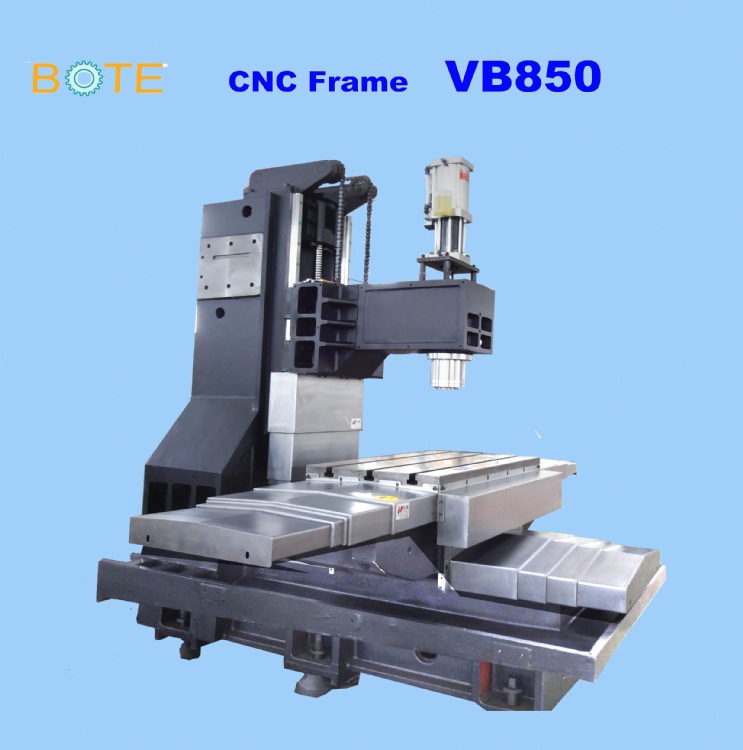

CNC Milling Machine Frame VB850
產品型號：VB850
產品分類：工具機產業機械 / 綜合加工機 / 立式綜合加工機
產品特色
CNC Machine Frame VB850，high speed,high precision
產品規格
|
|
Please visit our website for more information: www.botecnc.com VB850---Box guideways in 3 axes |
|
|
Travel |
X axis |
800mm |
|
Y axis |
500mm |
|
|
Z axis |
500mm |
|
|
Spindle nose to table |
120-620mm |
|
|
Spindle nose to column |
581mm |
|
|
Feed |
X rapid feed |
20m/min |
|
Y rapid feed |
20m/min |
|
|
Z rapid feed |
20m/min |
|
|
Cutting feed |
1-10m/min |
|
|
Torque |
X:12N.m Y:12 N.m Z:20N.m |
|
|
Table |
Table size |
1000×500mm |
|
Max load |
500Kg |
|
|
Table surface to floor |
About 800mm |
|
|
T slot |
3×18×150mm |
|
|
Spindle |
Type |
Belt |
|
Speed |
8000 rpm |
|
|
Spindle taper |
BT40 |
|
|
Main motor |
7.5KW |
|
|
Accuracy |
Accuracy （JIS） |
±0.005/300mm |
|
Repeatability （JIS） |
±0.003mm |
|
|
Other |
Frame Weight |
4500 Kgs |
|
Frame Size |
3000×2250×2600 |
|
visit our website for more information: www.botecnc.com
