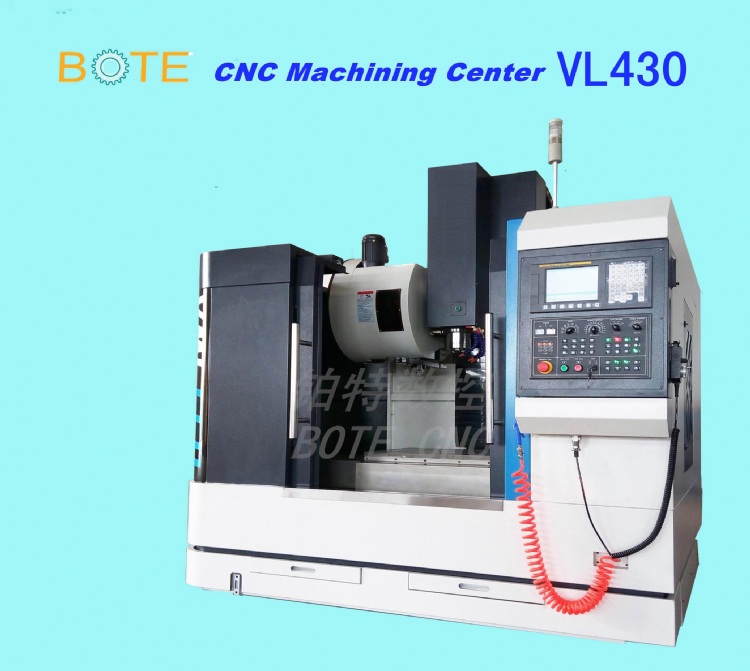

CNC Milling Machining Centers VL430
產品型號:VL430
產品分類:工具機產業機械 / 綜合加工機 / 立式綜合加工機
產品特色
Metal working cnc milling machine,4 axes cnc milling machine,cnc milling machine price
Quality
The outstanding machine performance relies on precision parts. To ensure each part achieves the highest accuracy and dependability, our Q.C department conducts 100% parts inspection.This combines with the use of a full series sophisticated inspection instrument to ensure only best quality parts fitted on all machines.
1-----Each spindle motor is subject to dynamic balance calibration before it been assembled to machine.With this process applied minimum spindle motor chattering maximum machining accuracy can be achieved.
2-----Renishaw Laser calibration system ensure machine accuracy.
3-----Renishaw Ball bar system,circular test ensures machine geometry
產品規格
Please visit our website for more information: www.botecnc.com
|
VL430 Linear guideways in 3 axes |
|
Travel |
X axis |
430mm |
Y axis |
300mm |
|
Z axis |
450mm |
|
Spindle nose to table |
100-550mm |
|
Spindle nose to column |
383mm |
|
Feed |
max X rapid feed |
30m/min |
max Y rapid feed |
30m/min |
|
max Z rapid feed |
30m/min |
|
Cutting feed |
1-10m/min |
|
Torque |
X:5N.m Y:5 N.m Z:5 N.m |
|
Table |
Table size |
700* 300mm |
Max load |
200Kg |
|
Table surface to floor |
760 mm |
|
T slot |
3*16*110mm |
|
Spindle |
Type |
Belt |
Speed |
8000 rpm |
|
Spindle taper |
BT30 |
|
Main motor |
3.7KW |
|
Accuracy |
Accuracy (JIS) |
0.005/300mm |
Repeatability (JIS) |
0.003mm |
|
Other |
Weight |
2200 Kgs |
Size |
1800*1700*2100 |
