juice filling equipmet
產品型號:CGFR24248
產品分類:包裝印刷暨食品及製藥機械 / 食品及製藥機械 / 果汁製造工廠機器設備
產品特色

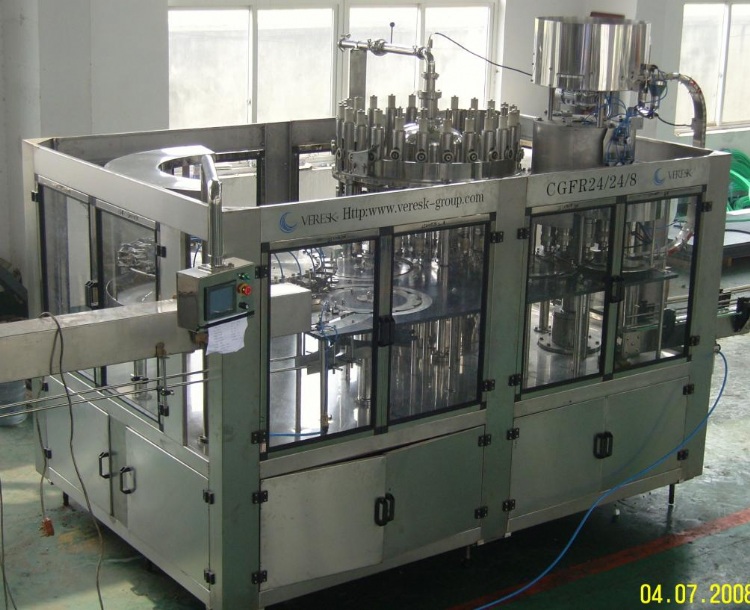

Supply RCGF juice, tea drinks hot filling production line
RCGF series automatic rinsing, filling and capping three in one machine imported from Italy technology, precision manufacturing, aseptic filling can be achieved, increasing the thermostat system, replacing some accessories, can be adapted to heat PET bottles, juice, tea, beverages, etc. hot filling process requirements. The unit advanced technology, small footprint, compact, suitable for a variety of non-carbonated PET bottled drinks (mineral water, purified water, distilled water, juice, tea, beverages, etc.) at room temperature or hot filling, but also for vinegar washing liquid, filling and sealing. 1990s with the international advanced level, is to replace the device into the product the best choice。
產品規格
|
||||||||
Model
|
CGFR
16126 |
CGFR
18186 |
CGFR
24248 |
CGFR
32328 |
CGFR
404010 |
CGFR
484812 |
CGFR
606015 |
CGFR
808020 |
Heads of washing, filling, sealing
|
16-12-6
|
18-18-6
|
24-24-8
|
32-32-8
|
40-40-10
|
48-48-12
|
60-60-15
|
80-80-20
|
Production capacity(bottle/hour)
|
3000-4000
|
5000-7000
|
8000-12000
|
12000-15000
|
16000-18000
|
20000-24000
|
24000-28000
|
36000-40000
|
Suitable bottle height
|
H=170-320, Φ=50-100 (330∼1500ml)
|
|||||||
Spraying pressure
|
0.25-0.3
|
|||||||
Total Power
|
1.5+0.37
|
2.2+0.37
|
3+0.45+
0.25 |
5.5 |
7.5
|
11
|
15
|
19
|
Overall dimension(L×W×H) |
2300×
1680× 2650 |
2500×
1760× 2650 |
3100×
2100× 2650 |
3800×
2800× 2650 |
4000×
3300× 3400 |
4850×
3650× 3300 |
6500×
5400× 3500 |
7650×
6400× 2700 |
Weight
|
2600
|
3500
|
4650
|
6800
|
8500
|
1000
|
12500
|
16000
|
