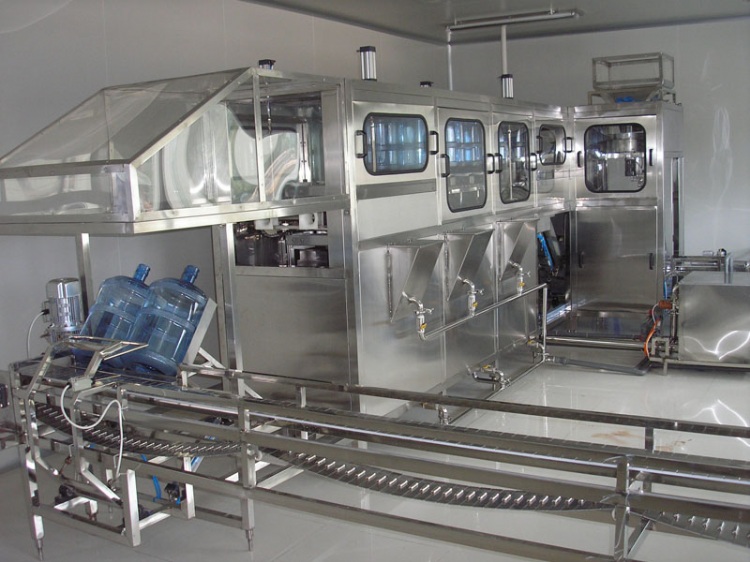

5 gallon bottle fillingmachne
產品型號:QGF-300
產品分類:包裝印刷暨食品及製藥機械 / 食品及製藥機械 / 蒸餾水製造機
產品特色
This filling line specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type.ltintegrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The sealer can seal bottle caps automatically.This line equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this line can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which integrates mechanism,electricity and pneumatics technologies together.
產品規格
Main Technical parameters |
|||||||
Model |
QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
Filling heads |
1 | 2 | 3 | 4 | 8 | 12 | 16 |
Volume(L) |
18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size(mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
Capacity(B/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
Gas pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption (m3/min) |
0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
Motor power(Kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
Rated voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Outline dimension(mm) | 3790×650 ×1550 |
3550×800 ×1800 2800×1100 ×1800 |
3550×1200 ×1800 3800×1100 ×1800 |
3650×1500 ×1800 3800×1100 ×1800 |
2200×1860 ×2700 |
2560×2350 ×2750 |
3100×2800 ×2750 |
Weight(kg) | 800 | 2800 | 4000 | 5500 | 7500 | 9500 | 11800 |
