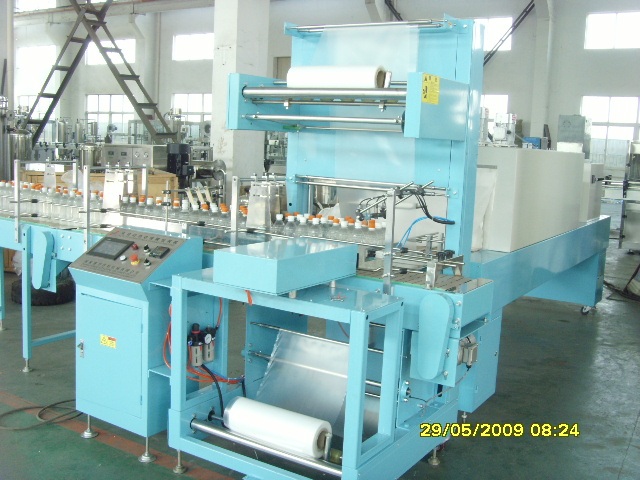

Automatic PE wrapping and shirking machine
產品型號:BTZ-12
產品分類:包裝印刷暨食品及製藥機械 / 包裝機械 / PVC/PE熱膜收縮包裝機
產品特色
Mineral water, soft drinks, beer, wine, infusion bottles and other packaging products portfolio, packing without bottom bracket, after packaging products tightened. Beautiful.
Features:
Imported PLC program automatic control, stable performance, precise control
With automatic conveyor feeding, bottle, shrinking and cooling processes fully automated functions.
Film transport using sensor switch control, adjustable length film feeding and reduce losses.
Conveyor motor adopts imported inverter control, stepless scheduling.
Advanced air circulation spiral structure, three-layer insulation treatment, energy conservation.
Enhanced cooling stereotypes channel, you can use the product quickly stereotypes, easy storage and transportation.
產品規格
.
Main Technical parameters |
||||
|
Semiauto |
Auto |
shrinking |
shrinking |
Model |
ST-6030 |
STZ-6030 |
SMZ-6040 |
SM-6040 |
Horizontal Height and length of infeed Conceyor |
850±50mm/450mm |
850±50mm/1500mm |
850±50mm |
850±50mm |
Max packing dimension(mm) |
L600×W300 |
L600×W300 |
L不限×W300 |
L不限×W300 |
Packing Speed |
8-12pcs/minute |
10-18pcs/minute |
0-12m/minute |
0-12m/minute |
Rated Power |
1φ/220V 1.8KW |
1φ/220V 2KW |
3φ/380V 18KW |
3φ/380V 15KW |
Shrink time/temperature |
0.5-1.5S |
0.5-1.5S |
0-6S |
0-6S |
Width of the Film/thick |
MAX×600mm |
MAX×600mm |
MAX×600mm |
MAX×600mm |
Overall dimension(mm) |
L1000×W900 |
L1500×W2700 |
L3000×W970 |
L2400×W970 |
Net weight(kg) |
490kg |
675kg |
550kg |
490kg |
